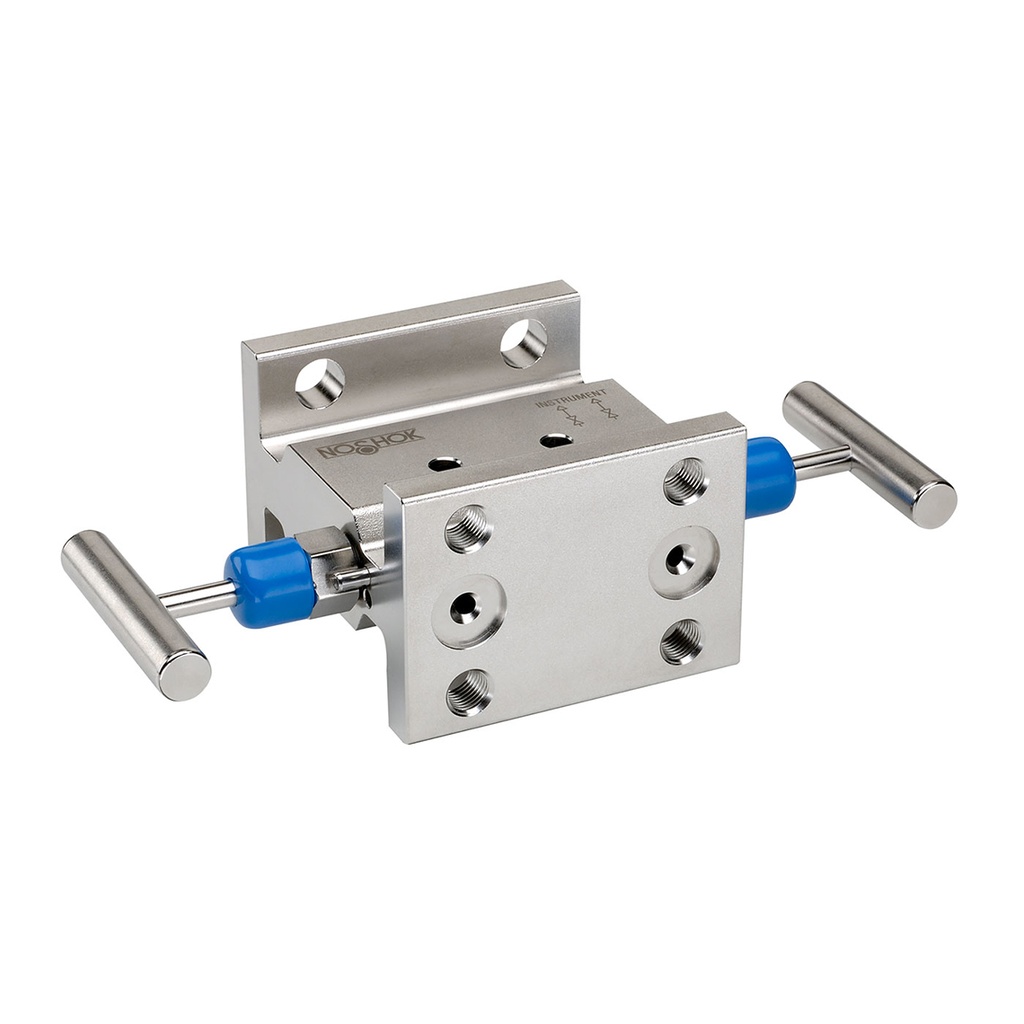

2020 Series 2-Valve Liquid Level Manifold Valve, Hard Seat, Flange x Flange, 316 SS, 0.187" Orifice
- Designed for use with differential pressure transmitters in liquid level applications
- Available in either single flange or double flange connection for direct installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Designed for use with differential pressure transmitters in liquid level applications
- Available in either single flange or double flange connection for direct installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve: Brand | NoShok |
| Valve: Design | Needle, Manifold |
| Valve: Pipe Size | 1/2 in |
| Valve: Body Material | Stainless Steel, Stainless Steel |
| Valve: Flow Factor (Cv) | 0.44 |
| Valve: Pressure (psi) | > 500 to 1000 psi (34.47 to 68.95 bar) |
| Valve: Orifice | 3/16in |
