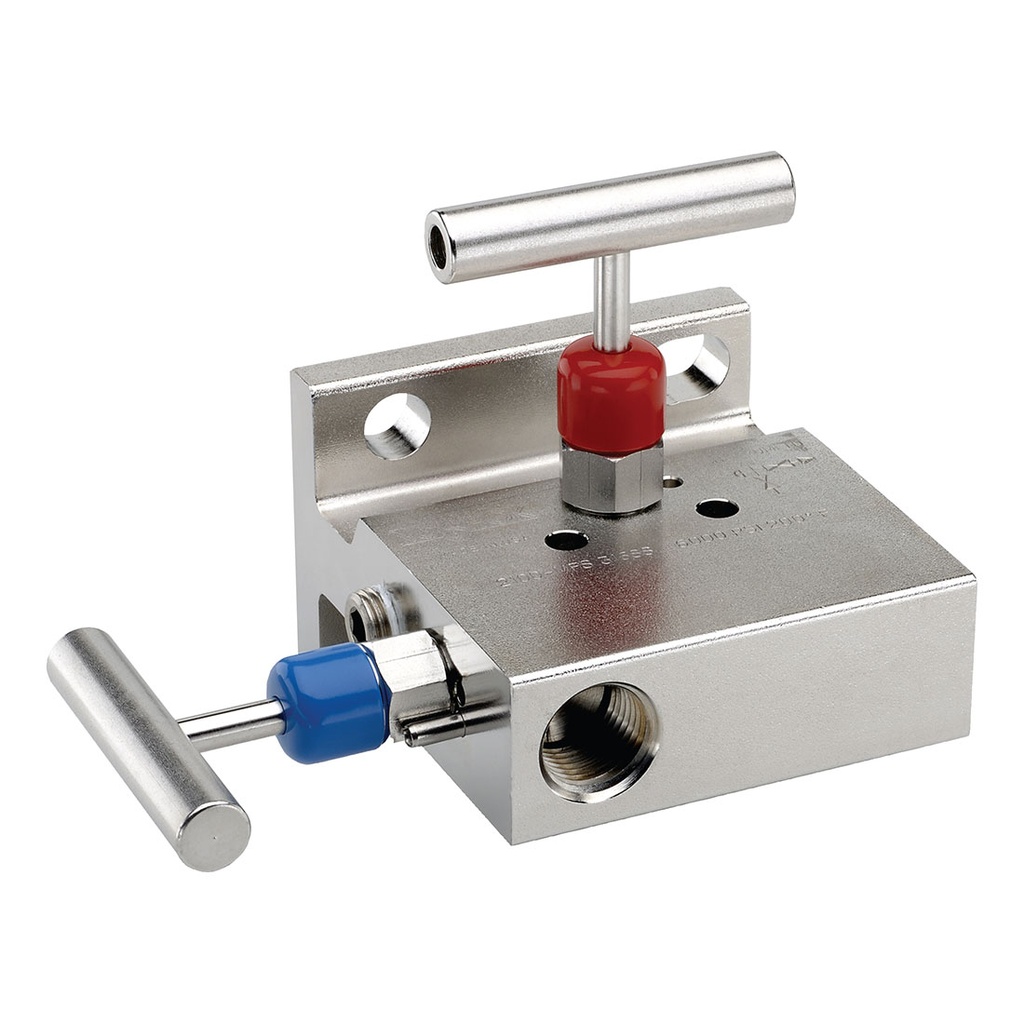

2000 Series 2-Valve Static Pressure Block & Bleed, Hard Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS, 0.187" Orifice, Carbide Ball Tip w/Grafoil Packing
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation

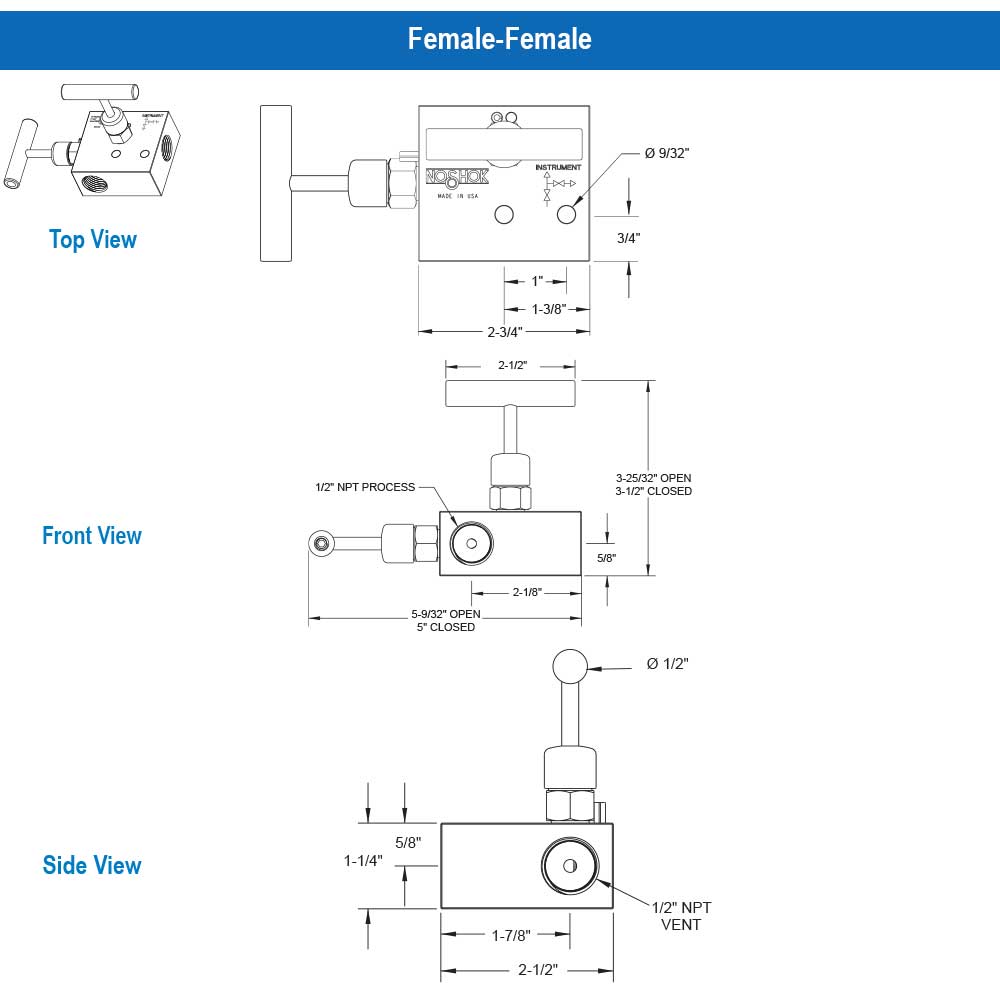

- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve: Brand | NoShok |
| Valve: Design | Needle, Manifold |
| Valve: Pipe Size | 1/2 in |
| Valve: Body Material | Stainless Steel, Stainless Steel |
| Valve: Flow Factor (Cv) | 0.44 |
| Valve: Pressure (psi) | > 500 to 1000 psi (34.47 to 68.95 bar) |
| Valve: Orifice | 3/16in |
