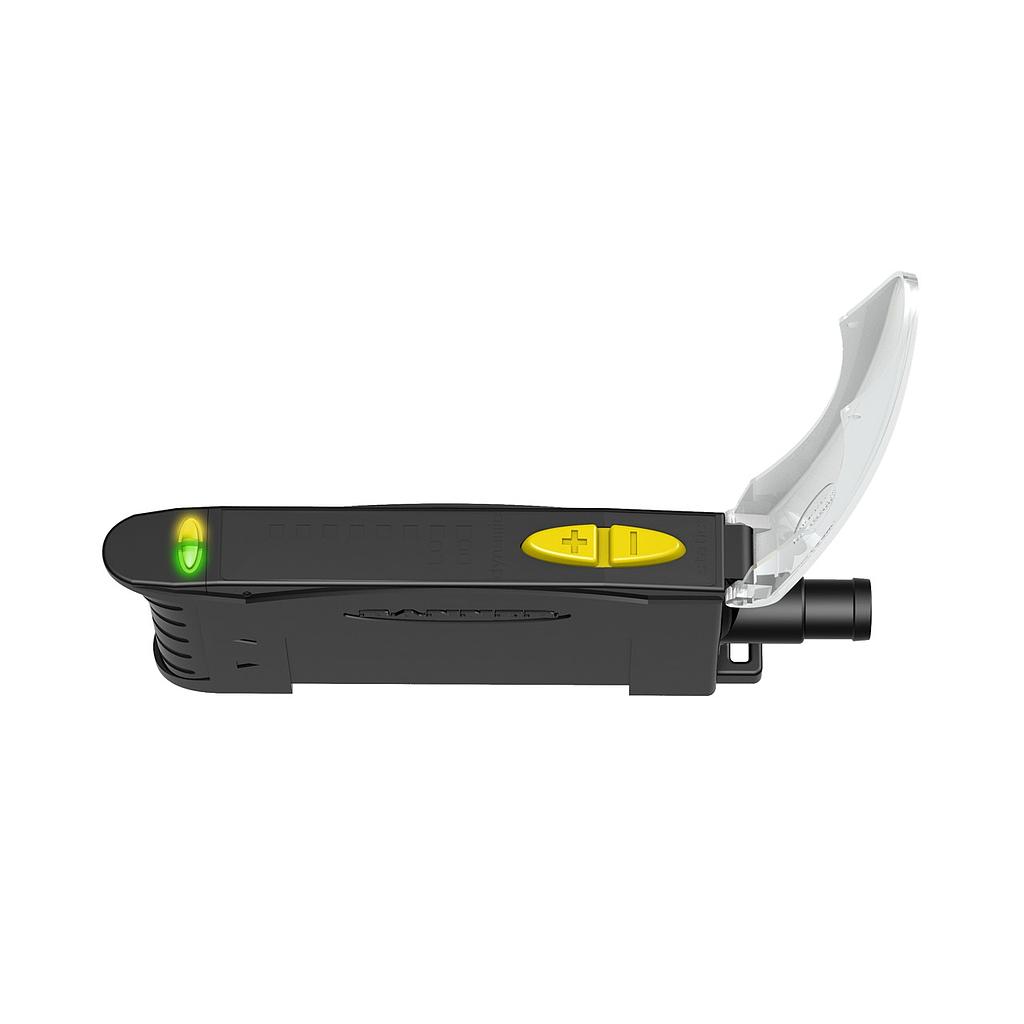

D10 Series Expert: Bargraph Display Discrete (D10BFPGQ5-19994)

https://www.branom.com/web/image/product.template/6853/image_1920?unique=c26756c
(0 review)

Features:

  • D10 Series Expert: Bargraph Display Discrete
  • Range: depends on the fiber
  • Input: 10-30 V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • 2 m (6.5 ft) Cable
  • Special Button Functions
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 200 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 66 to 100
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 55 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Number of Pins: 5
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: .2 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Green
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 1
  • Cord/Cable Length: 2 m
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Feature: Crosstalk Avoidance: Yes
  • Indicator Type: Bargraph
