LS-1900 LEVEL SWITCH, LS-1900 PVC PVC 1LVL(STK0)

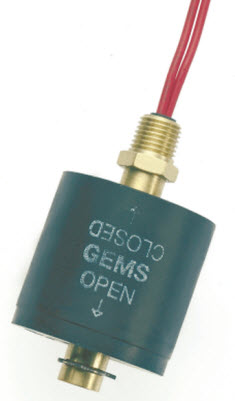

Representative photo. Please check item description for details.

LS-1900 LEVEL SWITCH, LS-1900 PVC PVC 1LVL(STK0)

https://www.branom.com/web/image/product.template/533114/image_1920?unique=c26756c
(0 review)

LS-1900 Series Single-Point Level Switch are intermediate in size, are suitable for high viscosity liquids and provide excellent stability for general use in oils and water. With large float displacement, the LS-1900 Series switch withstands rough service.

  • Sku: 01901
  • Model: LS-1900
  • Sensor Type: Float Type
  • Primary Material Of Construction: Alloy
  • Wetted Materials: Brass, Buna N, 316 Stainless Steel, Hysol
  • Stem Material: Brass
  • Float Material: Buna N
  • Float Diameter: 1 7/8"
  • Actuation Level: 1 3/16"
  • Min. Liquid SG: 0.55
  • Maximum Pressure: 150 psi
  • Minimum Temperature: -40°F
  • Maximum Temperature: 230°F
  • Mounting Size: 1/4" NPT Male
  • Mounting Style: Vertical
  • Electrical Termination: 25" Long, 18 AWG, Polymeric Leads
  • Switch Type: SPST (20 VA)
  • Switch Operation: Normally Open: (Reversible)
  • Input: N/A
  • Output: N/A
  • Approvals: UL Recognized, CSA Listed, CE,: ROHS

    • $ 115.07 115.07 USD $ 115.07

    $ 115.07

    Not Available For Sale

    • Measurement Maximum
    • Measurement Minimum

    This combination does not exist.

    Contact Us

    Share

    LS-1900 Series Single-Point Level Switch are intermediate in size, are suitable for high viscosity liquids and provide excellent stability for general use in oils and water. With large float displacement, the LS-1900 Series switch withstands rough service.

  • Sku: 01901
  • Model: LS-1900
  • Sensor Type: Float Type
  • Primary Material Of Construction: Alloy
  • Wetted Materials: Brass, Buna N, 316 Stainless Steel, Hysol
  • Stem Material: Brass
  • Float Material: Buna N
  • Float Diameter: 1 7/8"
  • Actuation Level: 1 3/16"
  • Min. Liquid SG: 0.55
  • Maximum Pressure: 150 psi
  • Minimum Temperature: -40°F
  • Maximum Temperature: 230°F
  • Mounting Size: 1/4" NPT Male
  • Mounting Style: Vertical
  • Electrical Termination: 25" Long, 18 AWG, Polymeric Leads
  • Switch Type: SPST (20 VA)
  • Switch Operation: Normally Open: (Reversible)
  • Input: N/A
  • Output: N/A
  • Approvals: UL Recognized, CSA Listed, CE,: ROHS
