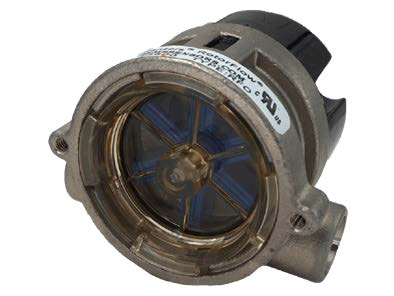

Representative photo. Please check item description for details.
GEMS RFO Series - Flow Set Point Switching, 4.5 VDC to 24 VDC Pulse (Sourcing)
Sensor Type RotorFlow
Low Flow Range (GPM) 1.5
Standard Flow Range (GPM) 5.0 to 30.0 GPM
Flow Range (GPM) 5-30 GPM
Body Material Brass
Port Size 1/2" NPT Female
Input Power 4.5 VDC to 24 VDC
Output 4.5 VDC to 24 VDC Pulse (Sourcing)
Low Flow Accuracy ±7%
Standard Flow Accuracy ±15%
Maximum Pressure (PSI) 200
Minimum Temperature (°F) -20
Maximum Temperature (°F) 212
Electrical Termination 22 AWG, 24"-24" PVC Cable
Wetted Materials Brass, Ceramic, PPS Composite, Polysulfone, Viton (Low Flow Adapter
Approvals UL Recognized, CE, CUL Recognized
Recommended Filtration 150 micron
Minimum Qty (per Release) 1
Weight (LBS) 1.375
Sensor Type RotorFlow
Low Flow Range (GPM) 1.5
Standard Flow Range (GPM) 5.0 to 30.0 GPM
Flow Range (GPM) 5-30 GPM
Body Material Brass
Port Size 1/2" NPT Female
Input Power 4.5 VDC to 24 VDC
Output 4.5 VDC to 24 VDC Pulse (Sourcing)
Low Flow Accuracy ±7%
Standard Flow Accuracy ±15%
Maximum Pressure (PSI) 200
Minimum Temperature (°F) -20
Maximum Temperature (°F) 212
Electrical Termination 22 AWG, 24"-24" PVC Cable
Wetted Materials Brass, Ceramic, PPS Composite, Polysulfone, Viton (Low Flow Adapter
Approvals UL Recognized, CE, CUL Recognized
Recommended Filtration 150 micron
Minimum Qty (per Release) 1
Weight (LBS) 1.375
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
