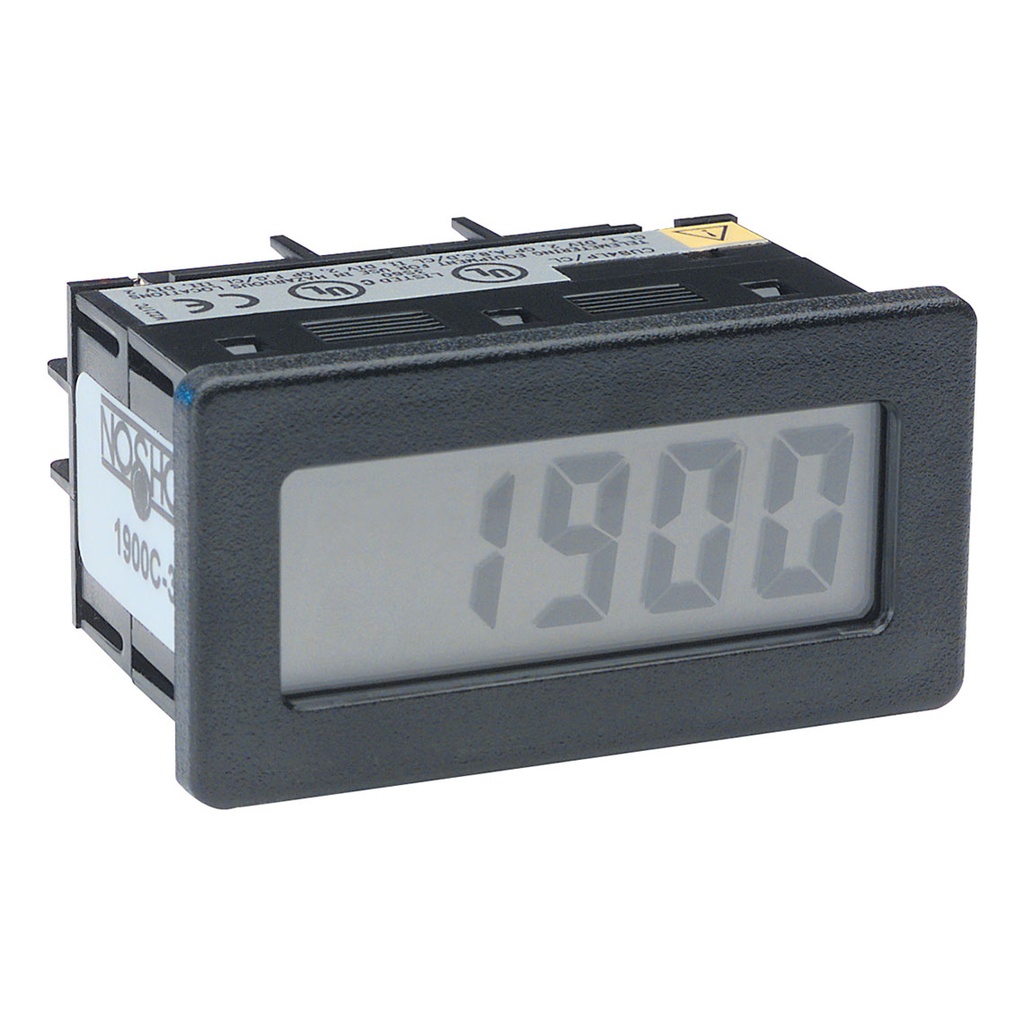

1900C Series Compact Loop-Powered Digital Indicator, Panel Meter LCD Backlight
- Provides compact digital display of any desired unit of pressure, temperature, level, force, or flow measurement
- 3-1/2 digit, 0.6" high display with a span range of 0 to 1999
- Positive image reflective LCD
- Span and zero offset capabilities
- Negative pressure and overpressure indication
- Selectable decimal point position
- Provides compact digital display of any desired unit of pressure, temperature, level, force, or flow measurement
- 3-1/2 digit, 0.6" high display with a span range of 0 to 1999
- Positive image reflective LCD
- Span and zero offset capabilities
- Negative pressure and overpressure indication
- Selectable decimal point position
Specifications
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Input Communication Protocol | Current |
| Ingress Protection | IP65 |
| Vibration | 5-500 Hz, 5g |
| Shock | 30 g |
| Electrical Connector Type | Screw Terminals |
| Process Display | 3½ digit, 0.6" LCD (-1999 to 1999) |
| Memory | EEPROM |
| Humidity | <85%, non-condensing |
| Update Rate | 400 ms |
| Altitude | ≤ 2,000 m |
| Linearization | 2 point |
| Normal Rejection Mode | 60 dB 50/60 Hz |
| NEMA / UL | NEMA 4X |
