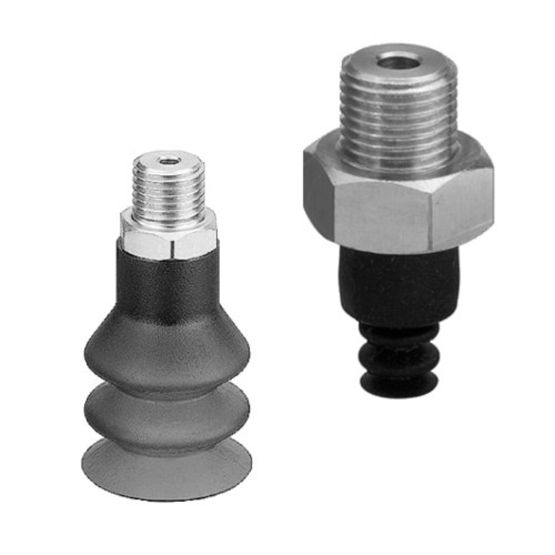

Representative photo. Please check item description for details.
AVENTICS BSA Series, 14.5 mm Bellow Suction Gripper, G 1/8, NBR, Internal Thread
AVENTICS Series BSA bellow suction grippers are suitable for workpieces with curved or inclined surfaces, as well as to compensate for height tolerances or to handle large-surface, non-rigid components such as large, thin sheets.
Features
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 70 °C
- Temporary ambient temperature (<30 s) min.: -30 °C
- Temporary ambient temperature (<30 s) max.: 120 °C
- Compressed air connection: G 1/8
- external diameter: 14.5 mm
- Holding force: 1.2 N
- Separation force: 5.7 N
- Volume: 0.98 cm³
- Max. curving on object Rmin: 15 mm
- Abrasion value according to DIN 535 16: 100-120 mm³
- Hardness according to standard: 55 ± 5 Shore A
- Connection thread type: Internal thread
- Material connector: Aluminum
- Suction unit material: Acrylonitrile butadiene rubber
- Delivery unit: 2 piece
- Weight: 0.006 kg:
