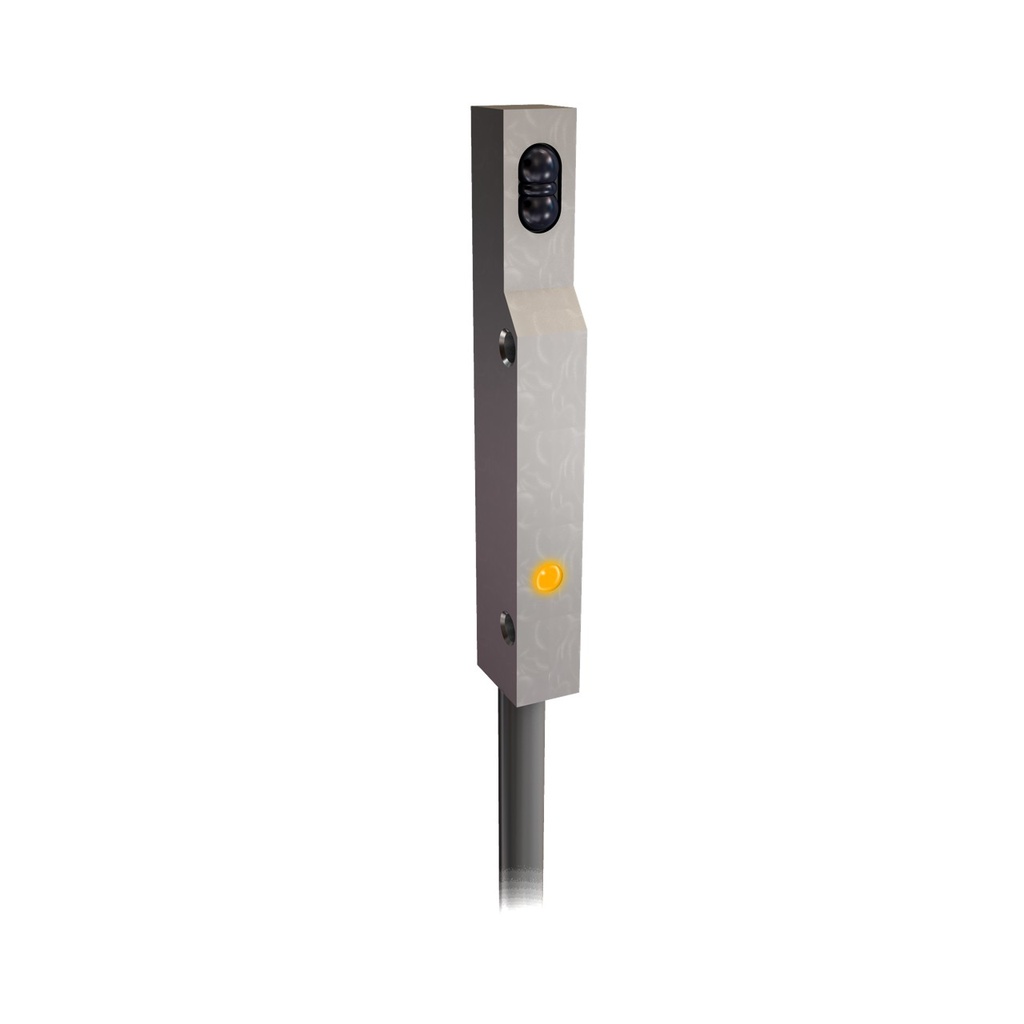

Vsm Series: 5X7X40 Mm Rectangular Diffuse (VSMQAP6CV90Q2)
Representative photo. Please check item description for details.

Vsm Series: 5X7X40 Mm Rectangular Diffuse (VSMQAP6CV90Q2)

https://www.branom.com/web/image/product.template/205528/image_1920?unique=c26756c
(0 review)

Features:

    VSM Series: 5x7x40 mm Rectangular Diffuse; Range: 90 mm; Input 10-30 V dc; Output: 1 PNP LO (Light Operate); Pico 3-pin 150 mm (6 in) Quick Disconnect Pigtail
    • Max Operating Temperature: 55 °C
  • Lens Material: Sapphire
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 20 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 90 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Housing Material_: SS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: Yes
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 2.5 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Other
  • Indicator Type: LED

$ 263.00 263.0 USD $ 263.00

$ 263.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets
