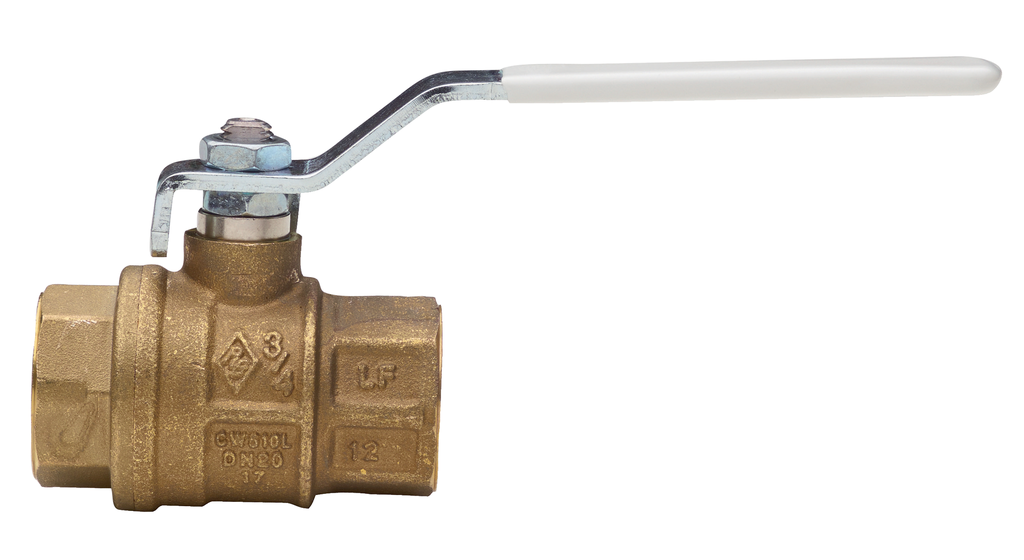

17xx LF Lead Free Series, Brass Ball Valve, FNPT Threaded, Full Port
171N LF - 172N LF Lead Free Series brass ball valve, FNPT threaded, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to 366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, STL coated LF brass ball.
PTFE seats, seals, and thrust washer.
Adjustable stem packing.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
Meets the design criteria of MSS SP-110
Model Details
171N LF: LEVER HANDLE - size 1/4” to 2”.
171L LF: LOCKING HANDLE - size 1/4” to 2”.
172N LF: T-HANDLE - size 1/4” to 1”.
171S LF: Ball and stem in stainless steel AISI 316 - size 1/4” to 2”.
For sizes 2 1/2”, 3” and 4” see 161N LF.
* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
171N LF - 172N LF Lead Free Series brass ball valve, FNPT threaded, full port.
Features
Pressure rating 600 WOG-150 WSP.
Temperature range -4°F to 366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, STL coated LF brass ball.
PTFE seats, seals, and thrust washer.
Adjustable stem packing.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
Meets the design criteria of MSS SP-110
Model Details
171N LF: LEVER HANDLE - size 1/4” to 2”.
171L LF: LOCKING HANDLE - size 1/4” to 2”.
172N LF: T-HANDLE - size 1/4” to 1”.
171S LF: Ball and stem in stainless steel AISI 316 - size 1/4” to 2”.
For sizes 2 1/2”, 3” and 4” see 161N LF.
* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Specifications
| Handle | [171N LF] Lever Handle, [172N LF] T-Handle, [171L LF] Locking Handle, [171 S LF] Ball and Stem, SS AISI 316 |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1, 1-1/4", 1-1/2", 2, 1/4" , 3/8" , 1/2" , 3/4" , 1" , 1-1/4" , 1-1/2" , 2" , 1/2" , 3/4" , 1" , 1-1/4" , 1-1/2" , 2 |
