Opposed Mode Individual Glass Fiber 1.83 M Long (IA26SM600)

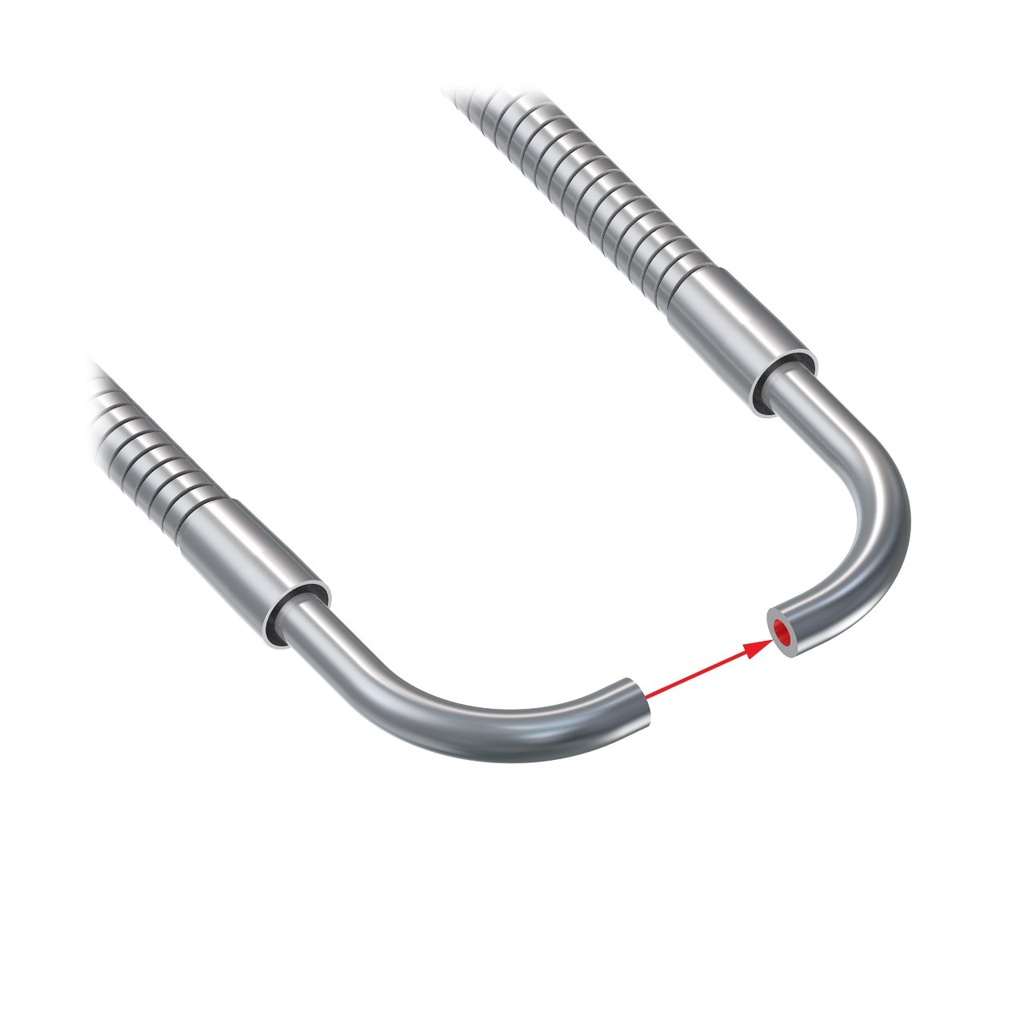

Representative photo. Please check item description for details.

Opposed Mode Individual Glass Fiber 1.83 M Long (IA26SM600)

https://www.branom.com/web/image/product.template/202545/image_1920?unique=c26756c
(0 review)

Features:

    Opposed Mode Individual Glass Fiber 1.83 m long; 3.18 mm dia. Bundle; Stainless Steel Sheath; Right angle sensing tip
    • Max Operating Temperature: 249 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Angle
  • Tariff Fiber Meters: 6272.78 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 4.8 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Angle
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 3.2 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Flex Relief: No
  • Termination Type: Glass Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 4.8 mm
  • Fiber Length: 1.83 m
  • Fiber Optic Type: Glass
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 226.00 226.0 USD $ 226.00

$ 226.00

Not Available For Sale

    This combination does not exist.
