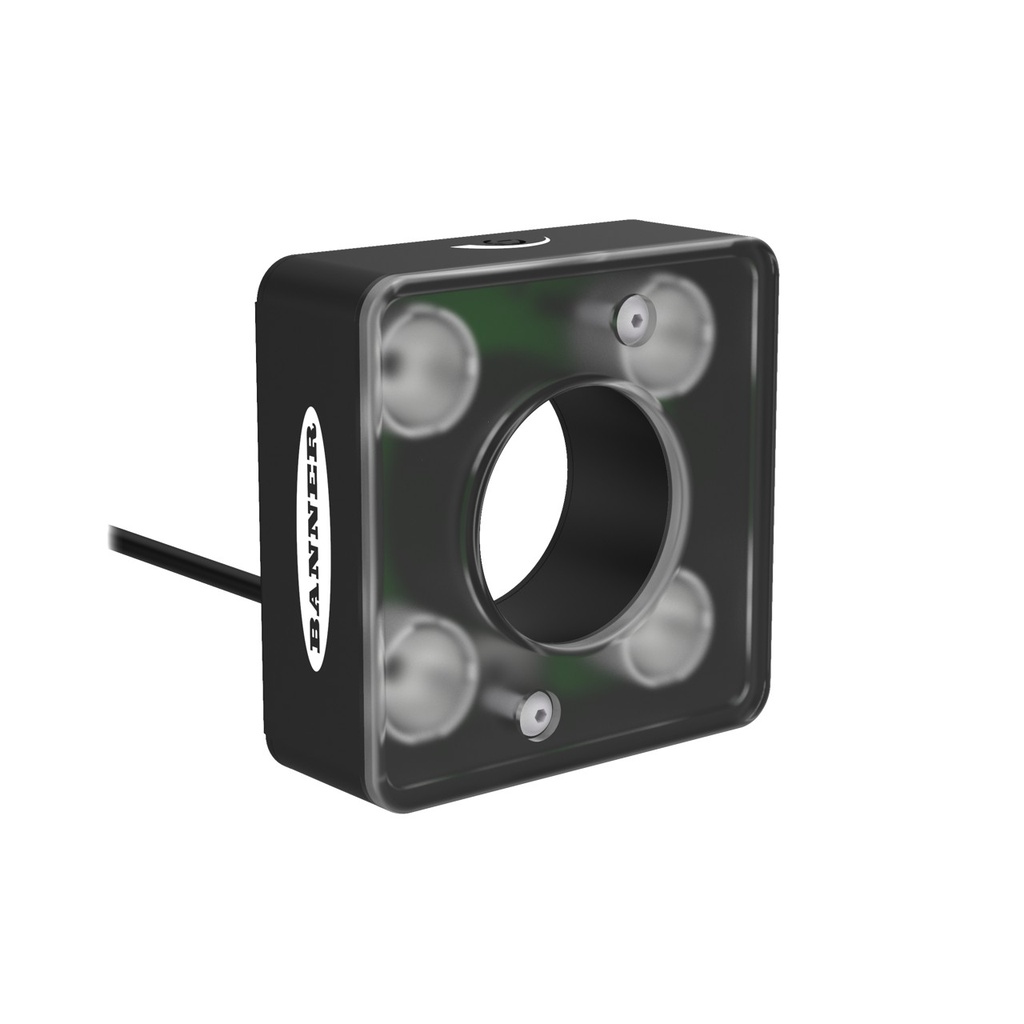

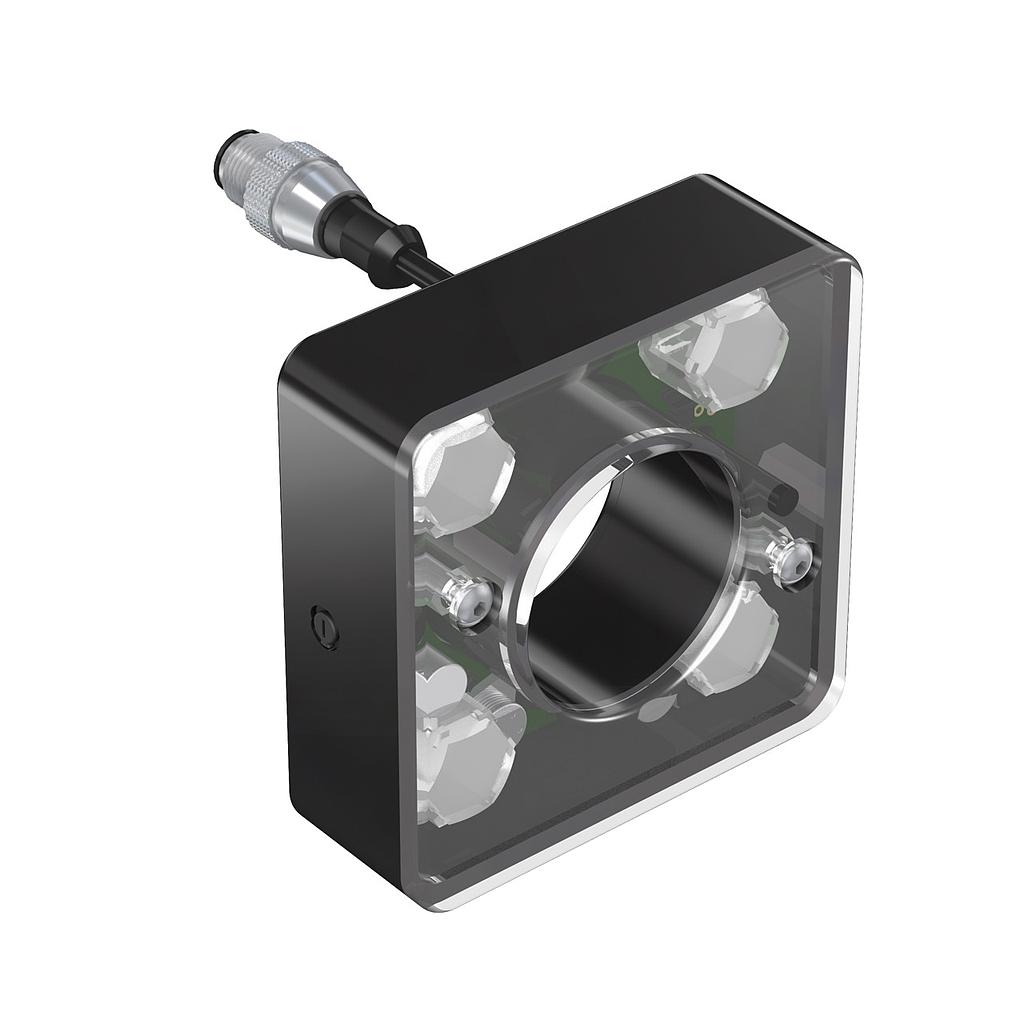

LED High Intensity Ring Light (LEDRR70XD5-XQ)

https://www.branom.com/web/image/product.template/3636/image_1920?unique=c26756c
(0 review)

Features:

  • LEDRR70XD5-XQ LED High Intensity Ring Light
  • LED Color: Red 620nm to 630nm
  • Input: +24Vdc
  • Light Intensity Adjustment
  • 150mm (6in) Pigtail 5-pin Euro QD
  • Power: DC
  • Max Current Color: 350 mA
  • Max Operating Temperature: 50 °C
  • Housing Style: Rectangular
  • Device Type: Ring Light
  • Housing Material_: Anodized Aluminum
  • Physical Dimensions: 76.2 x 76.2 x 38.7 mm
  • Supply Voltage: 24 V DC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Number of Input Pins/Conductors: 5
  • Color: Red
  • QD Type/Cable Length: M12; requires mating cordset
  • Connection Type: Integral QD

$ 454.00 454.0 USD $ 454.00

$ 454.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • LEDRR70XD5-XQ LED High Intensity Ring Light
    • LED Color: Red 620nm to 630nm
    • Input: +24Vdc
    • Light Intensity Adjustment
    • 150mm (6in) Pigtail 5-pin Euro QD
    • Power: DC
    • Max Current Color: 350 mA
    • Max Operating Temperature: 50 °C
    • Housing Style: Rectangular
    • Device Type: Ring Light
    • Housing Material_: Anodized Aluminum
    • Physical Dimensions: 76.2 x 76.2 x 38.7 mm
    • Supply Voltage: 24 V DC
    • Feature: Quick Disconnect: Yes
    • Color Technology: Standard LED
    • Number of Input Pins/Conductors: 5
    • Color: Red
    • QD Type/Cable Length: M12; requires mating cordset
    • Connection Type: Integral QD
