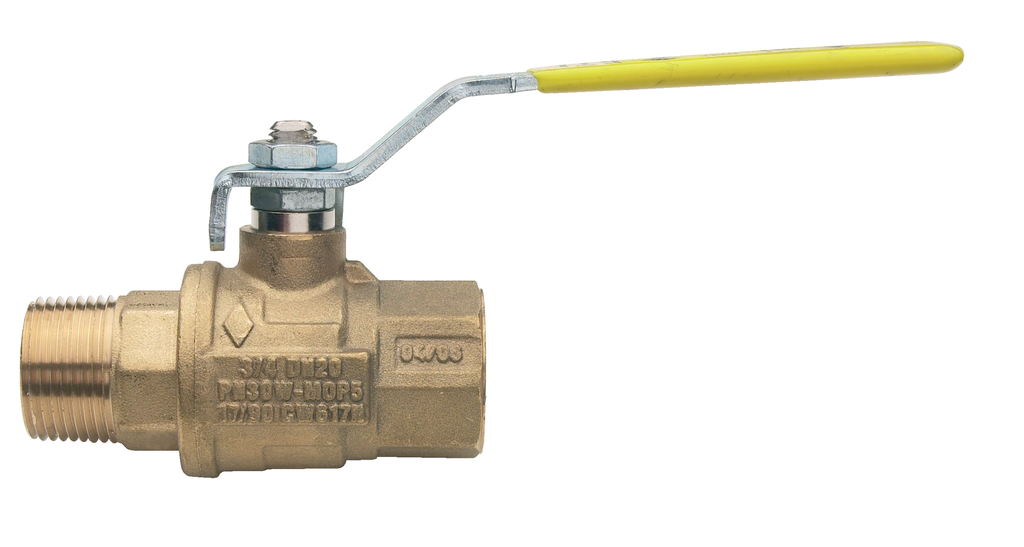

171M Euro-Sfer Series Commercial Full Port Brass Ball Valve

https://www.branom.com/web/image/product.template/534303/image_1920?unique=c26756c
(0 review)

171M Euro-Sfer Series Commercial style brass ball valve, MNPT X FNPT threaded, full port.

Features

  • Pressure rating 600 WOG-150 WSP.

  • Temperature range -4°F to +366°F.

  • ANSI B1.20.1 connections.

  • Blow-out proof stem, chrome plated brass ball.

  • PTFE seats, seals, and thrust washer.

  • Adjustable stem packing.

  • 100% electronically tested in the open and closed position at 80 psi.

  • Not to be used for drinking water.

  • Valve to be used in fully open or fully closed position.

Model Details

  • 171M: LEVER HANDLE - size 1/4” to 1”.

  • 171MCR: CHROME PLATED - size 1/4” to 1”.

  • 171MCRL: CHROME PLATED WITH LOCKING HANDLE - sizes 1/4” to 1”.


$ 12.41 12.41 USD $ 12.41

$ 12.41

Not Available For Sale

  • Model
  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

171M Euro-Sfer Series Commercial style brass ball valve, MNPT X FNPT threaded, full port.

Features

  • Pressure rating 600 WOG-150 WSP.

  • Temperature range -4°F to +366°F.

  • ANSI B1.20.1 connections.

  • Blow-out proof stem, chrome plated brass ball.

  • PTFE seats, seals, and thrust washer.

  • Adjustable stem packing.

  • 100% electronically tested in the open and closed position at 80 psi.

  • Not to be used for drinking water.

  • Valve to be used in fully open or fully closed position.

Model Details

  • 171M: LEVER HANDLE - size 1/4” to 1”.

  • 171MCR: CHROME PLATED - size 1/4” to 1”.

  • 171MCRL: CHROME PLATED WITH LOCKING HANDLE - sizes 1/4” to 1”.

Specifications

Model [171M] Lever Handle, [171MCR] Chrome-Plated, [171MCRL] Chrome-Plated w/Locking Handle
Valve Size 1/4", 3/8", 1/2", 3/4", 1", 1/4"⠀, 3/8"⠀, 1/2"⠀, 3/4"⠀, 1"⠀, 1/4" ⠀, 3/8" ⠀, 1/2" ⠀, 3/4" ⠀, 1" ⠀
