Q26 Series Clear Object Sensor (Q26NXLPQ7)

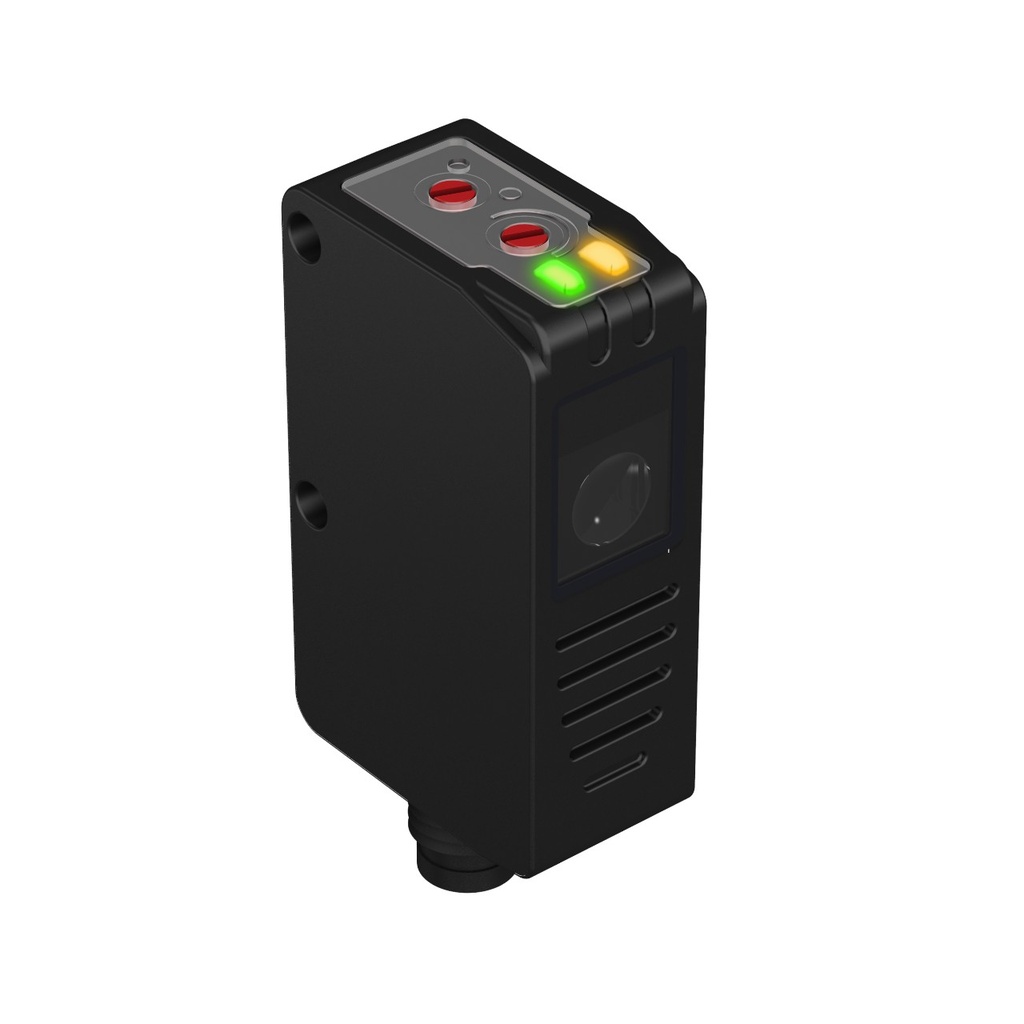

Representative photo. Please check item description for details.

Q26 Series Clear Object Sensor (Q26NXLPQ7)

https://www.branom.com/web/image/product.template/204089/image_1920?unique=c26756c
(0 review)

Features:

    Q26 Series Clear Object Sensor; Range 0-0.8 m; Supply Voltage 12-30 V dc; Rating IP67; NPN Outputs; Coaxial Optics Visible Red LED; Pico M8 4-pin Connector
  • Power: DC
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Glass
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 50
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular
  • Max Sensing Distance: 800 mm
  • Sensing Mode (Detailed): Polarized (Coaxial)
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.25 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Clear Object Detection: Yes
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED
