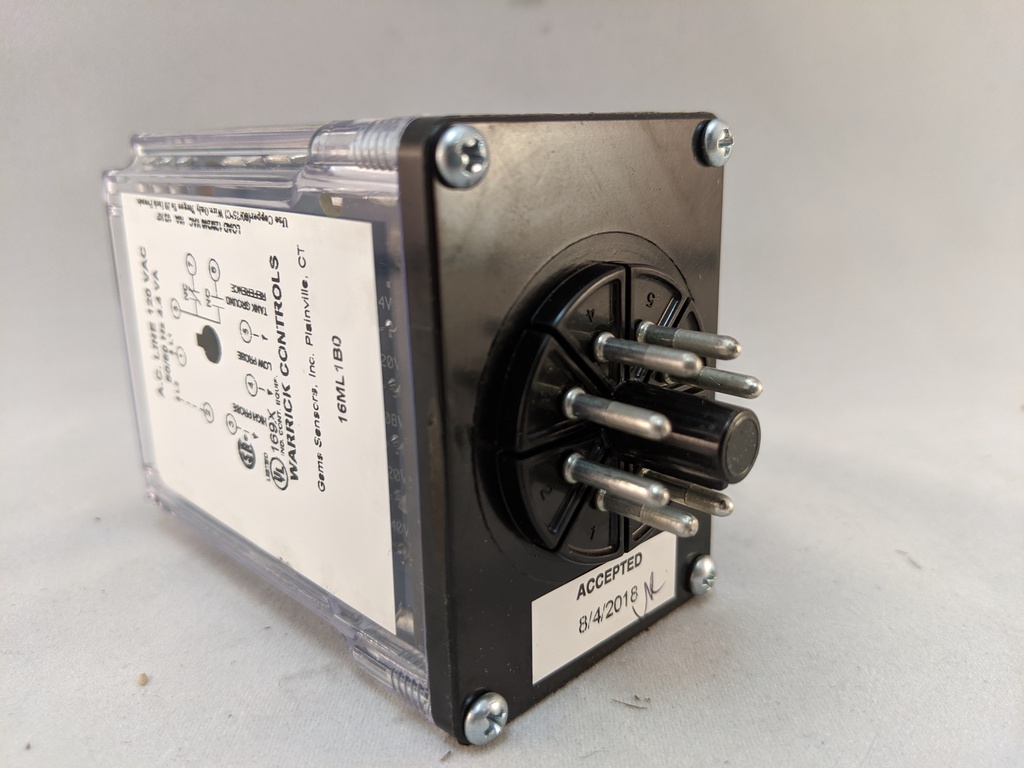

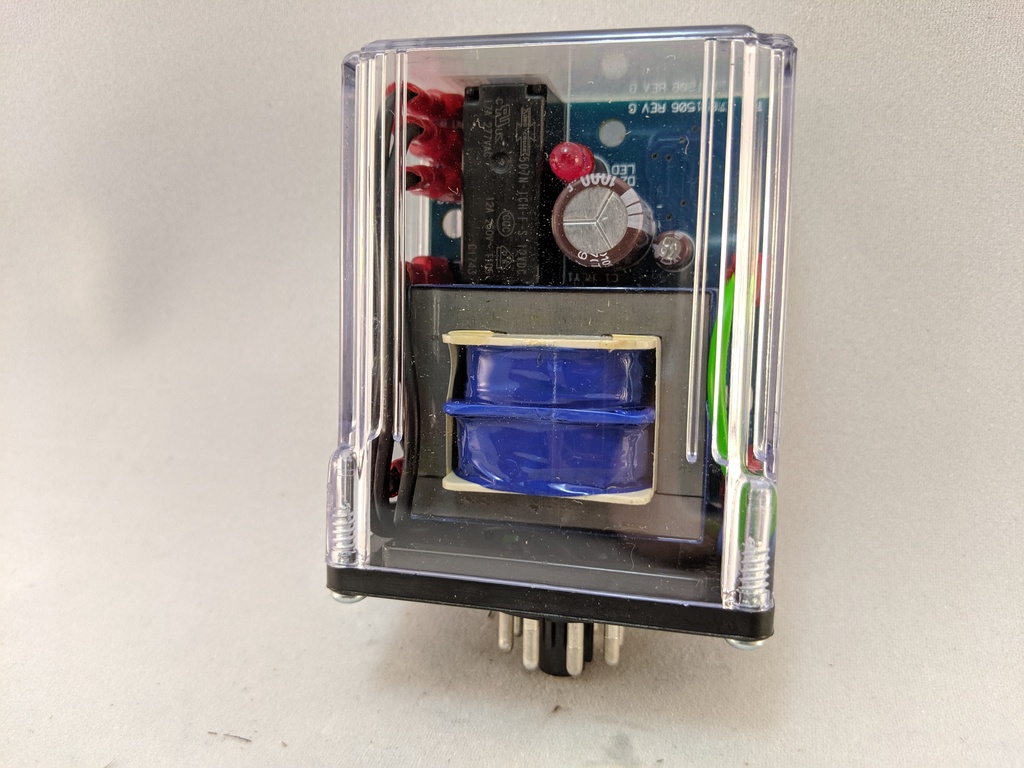

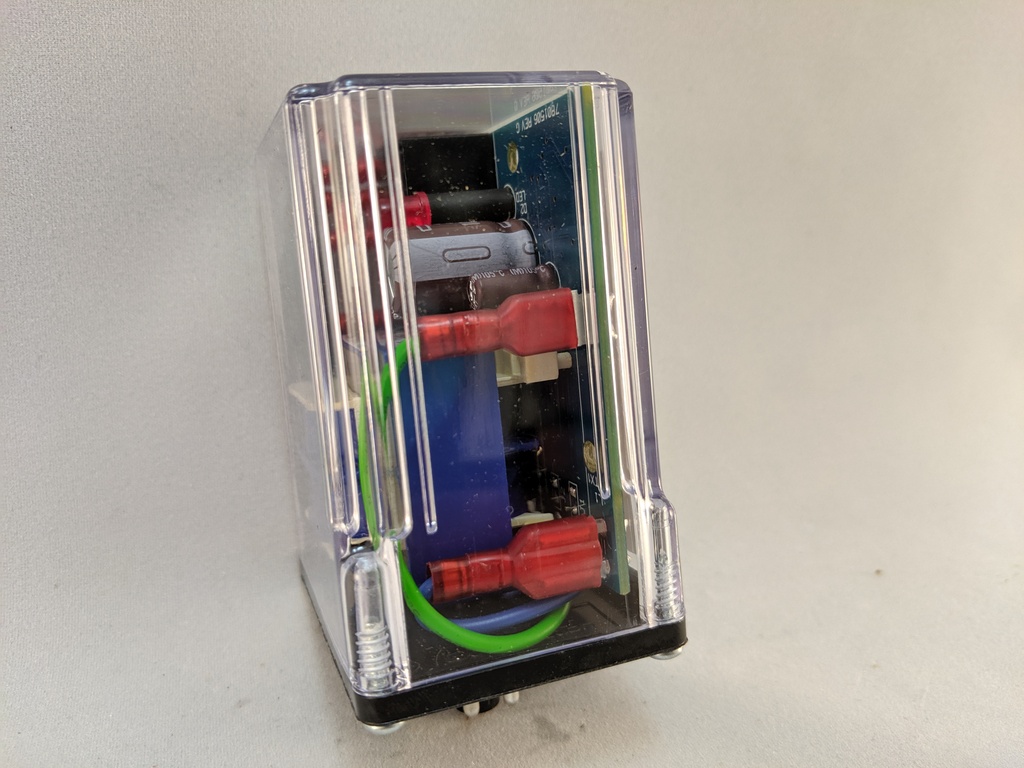

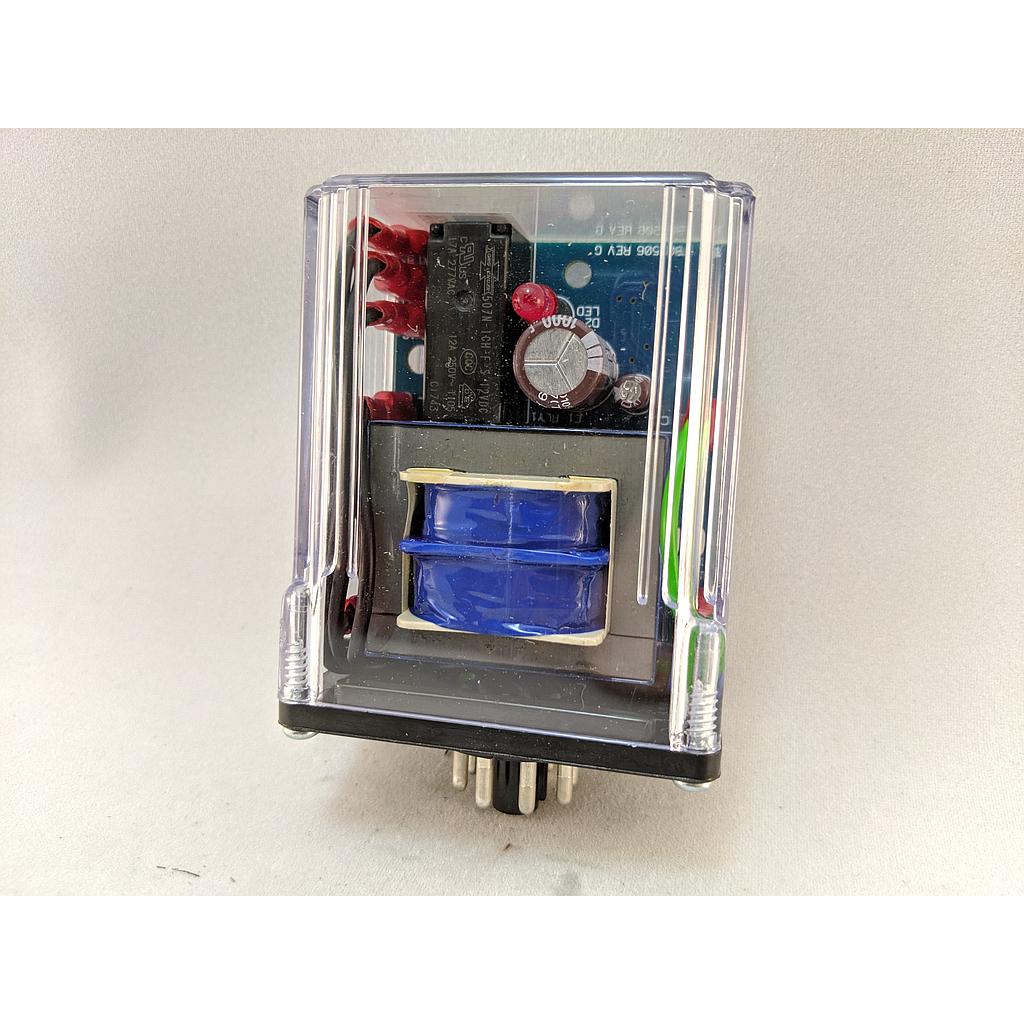

LEVEL CONTROL 10K OHM SENSITIVITY 120 VAC DIN MOUNT

https://www.branom.com/web/image/product.template/162255/image_1920?unique=c26756c
(0 review)

Series 16M Solid State Plug-in Modules offer general purpose, high-sensitivity and field-sensitivity control as well as a DPDT load contact option. Series 16M

  • General Purpose Designed for either differential or single-level service. U.L. "Motor Controller"

    listing, 8-pin socket with screw-type connections make the unit easy to install and service. Sensitivity of up to 1 million ohm/cm. Series 16DM
  • DPDT Load Contact Similar to Series 16M but with DPDT load contacts. Eliminates the need for slave relays.

    11 pin octal plugs. Requires little panel space. General purpose single-level or diffferential applications. U.L. listed. Series 16HM
  • High Sensitivity Series 16HM is similar to Series 16M but provides higher sensitivity up to 5.5 million ohm/cm.

    Probe voltage is 12 VDC for applications with low conductive media. Series 16VM
  • Field Selectable Sensitivity Similar to Series 16M but with the added flexibility of field adjustable sensitivity, made possible through external setpoint resistors.

    Uses 11 pin octal socket. U.L. listed.

  • Sku: 16ML1B0
  • Model: 16M
  • Sensor Type: General Purpose Controls
  • Mode Of Operation: Inverse
  • Sensitivity: 10 K ohms
  • Control Style: Plug-In Module
  • Socket Style: DIN Mount
  • Standoff Style: N/A
  • Enclosure: N/A
  • Contact Design: 1 Normally Open & 1 Normally Closed (non-powered)
  • Contact Rating: 10 Amp Resistive 1/3 horse power
  • Supply Voltage: 120 VAC
  • Secondary Voltage: 12 VAC
  • Terminal Style: Screw Connector
  • Minimum Temperature: -40°F
  • Maximum Temperature: 150°F
  • Protection: Non-Intrinsically Safe
  • Approvals: UL 508 General Purpose
  • Weight: 1.1

    • $ 362.60 362.6 USD $ 362.60

    $ 362.60

    Not Available For Sale
