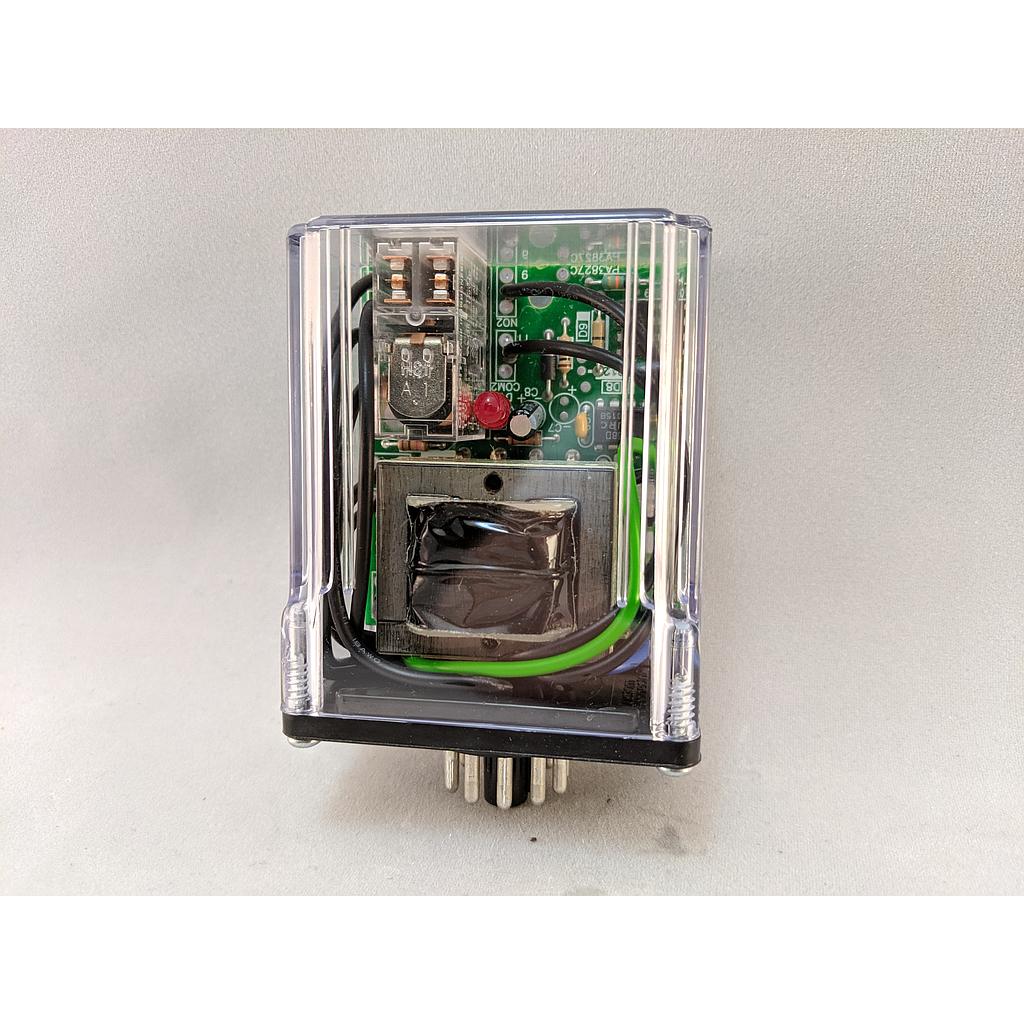

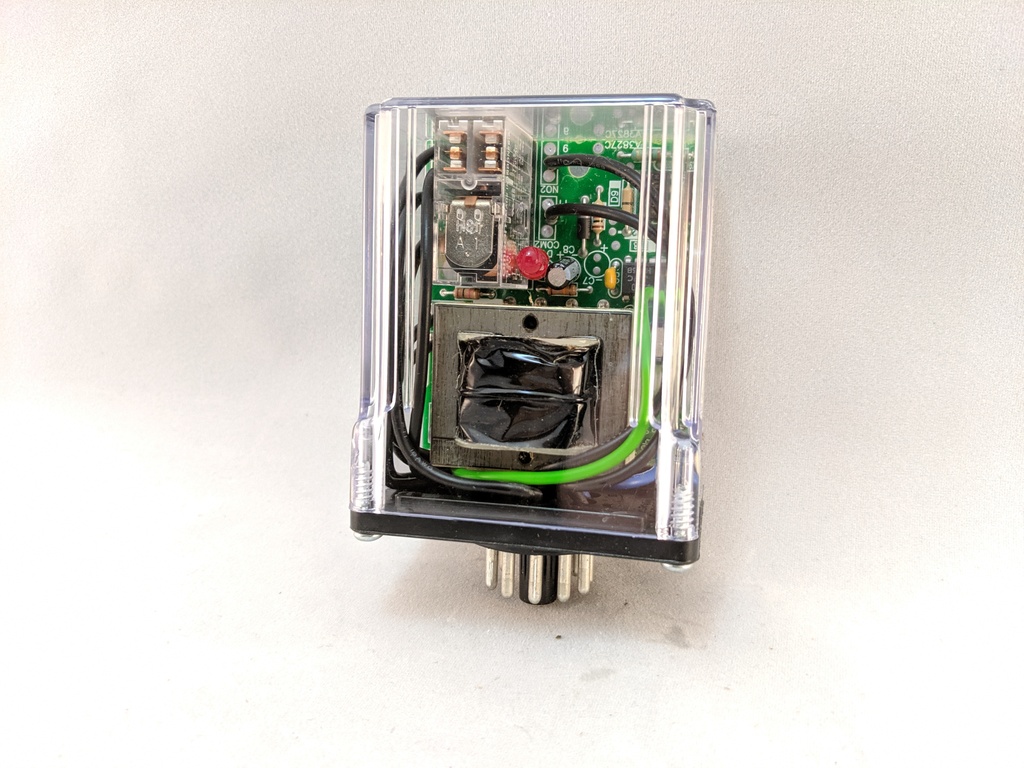

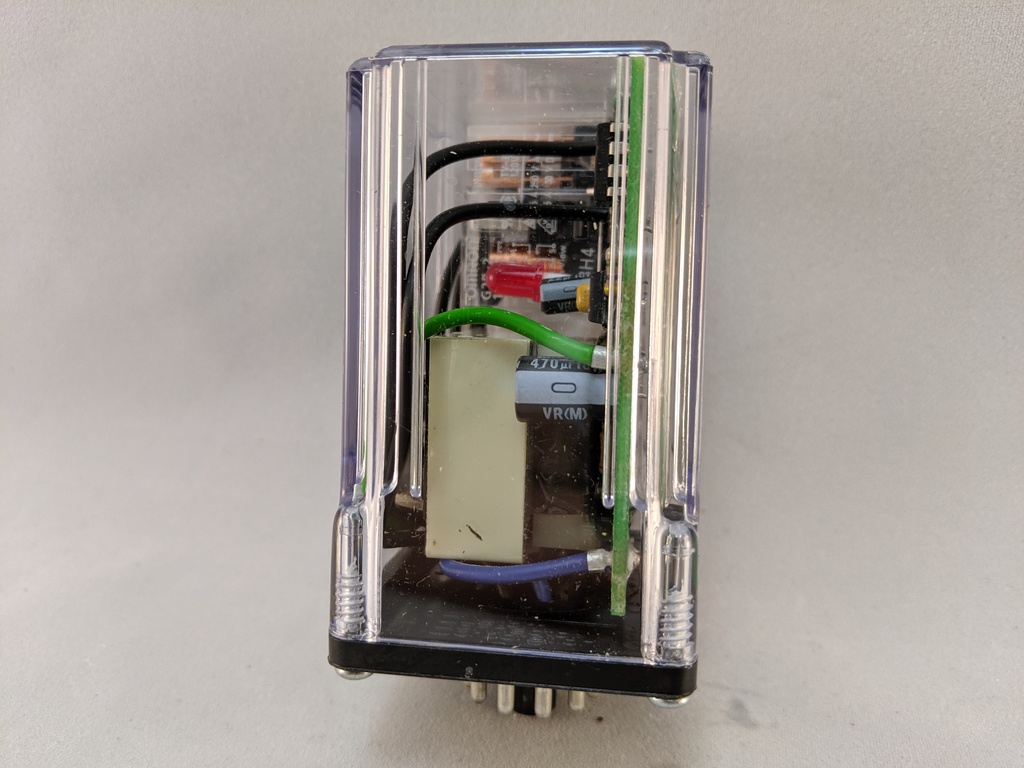

Level Control DPDT Contacts, 26K Ohms, 120VAC, 11 Pin DIN Mount Octal Socket, No Enclosure
Series 16M Solid State Plug-in Modules offer general purpose, high-sensitivity and field-sensitivity control as well as a DPDT load contact option. Series 16M
General Purpose Designed for either differential or single-level service. U.L. "Motor Controller"
listing, 8-pin socket with screw-type connections make the unit easy to install and service. Sensitivity of up to 1 million ohm/cm. Series 16DM
DPDT Load Contact Similar to Series 16M but with DPDT load contacts. Eliminates the need for slave relays.
11 pin octal plugs. Requires little panel space. General purpose single-level or diffferential applications. U.L. listed. Series 16HM
High Sensitivity Series 16HM is similar to Series 16M but provides higher sensitivity up to 5.5 million ohm/cm.
Probe voltage is 12 VDC for applications with low conductive media. Series 16VM
Field Selectable Sensitivity Similar to Series 16M but with the added flexibility of field adjustable sensitivity, made possible through external setpoint resistors.
Uses 11 pin octal socket. U.L. listed.
Sku: 16DMC1B0
Model: 16DM
Sensor Type: General Purpose Controls
Mode Of Operation: Direct
Sensitivity: 26 K ohms
Control Style: Plug-In Module
Socket Style: DIN Mount
Standoff Style: N/A
Enclosure: N/A
Contact Design: 2 Normally Open & 2 Normally Closed (non-powered)
Contact Rating: 5 Amp Resistive 1/10 horse power
Supply Voltage: 120 VAC
Secondary Voltage: 12 VAC
Terminal Style: Screw Connector
Minimum Temperature: -40°F
Maximum Temperature: 150°F
Protection: Non-Intrinsically Safe
Approvals: UL 508 General Purpose
Weight: 1.1
