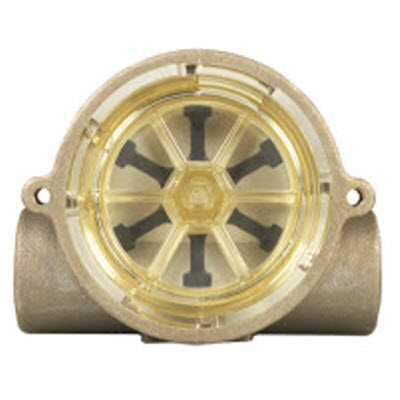

Representative photo. Please check item description for details.

RFS-2500S-9/16-18-24VDC(STK0), SS BODY MATERIAL

https://www.branom.com/web/image/product.template/532188/image_1920?unique=c26756c
(0 review)

  • Sensor Type: RotorFlow
  • Model: RFS
  • Primary Material Of Construction: Alloy
  • Body Material: 316 Stainless Steel
  • Wetted Materials: 316 Stainless Steel, Ceramic, PPS Composite, Polysulfone, Viton (Low Flow Adapter
  • Polypropylene)
  • Maximum Pressure: 200 psi
  • Minimum Temperature: -20°F
  • Maximum Temperature: 212°F
  • Input Power: 24 VDC
  • Output: SPDT (1 amp)
  • FlowRange: 4.0
  • 20.0 GPM
  • Standard Flow Range: 4.0
  • 20.0 GPM
  • Standard Flow Accuracy: ±5% (factory set)
  • Low Flow Range: 1.5
  • 12.0 GPM
  • Low Flow Accuracy: ±5% (factory set)
  • Port Size: 9/16-18 Straight Thread with O-ring Seal
  • Electrical Termination: 24" Long, 22 AWG, PVC Leads
  • Recommended Filtration: 150 micron
  • Approvals: UL Recognized, CE
  • Weight: 0.5

    • Measurement Maximum
    • Process Connection Type
    • Measurement Minimum

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

  • Sensor Type: RotorFlow
  • Model: RFS
  • Primary Material Of Construction: Alloy
  • Body Material: 316 Stainless Steel
  • Wetted Materials: 316 Stainless Steel, Ceramic, PPS Composite, Polysulfone, Viton (Low Flow Adapter
  • Polypropylene)
  • Maximum Pressure: 200 psi
  • Minimum Temperature: -20°F
  • Maximum Temperature: 212°F
  • Input Power: 24 VDC
  • Output: SPDT (1 amp)
  • FlowRange: 4.0
  • 20.0 GPM
  • Standard Flow Range: 4.0
  • 20.0 GPM
  • Standard Flow Accuracy: ±5% (factory set)
  • Low Flow Range: 1.5
  • 12.0 GPM
  • Low Flow Accuracy: ±5% (factory set)
  • Port Size: 9/16-18 Straight Thread with O-ring Seal
  • Electrical Termination: 24" Long, 22 AWG, PVC Leads
  • Recommended Filtration: 150 micron
  • Approvals: UL Recognized, CE
  • Weight: 0.5

    • Specifications

    Measurement Maximum 20.0
    Process Connection Type NPT-Female
    Measurement Minimum 1.5
