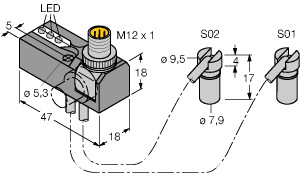

Turck Inductive Sensor, Monitoring Kit for Power Clamps (NI2-BTM-0.16-BDS-2AP6X3-H1141/S34)
Inductive Sensor Features
- Monitoring Kit for Power Clamps
- Rated switching distance 2 mm
- Cable length (L) 0.16 m
- Non-flush
- Rectangular
- height 18 mm
- Plastic
- PP GR-20
- Mounting instructions and minimum distances acc. to BTM specification must be observed when mounted in metal
- Blind hole: Ø 10 mm ; depth 4 mm
- Resistant to magnetic fields (weld-resistant)
- for DC and AC fields up to 100 mT
- 2 x NO contact
- PNP output
- DC 4-wire
- 10…30 VDC
Inductive Sensor Features
- Monitoring Kit for Power Clamps
- Rated switching distance 2 mm
- Cable length (L) 0.16 m
- Non-flush
- Rectangular
- height 18 mm
- Plastic
- PP GR-20
- Mounting instructions and minimum distances acc. to BTM specification must be observed when mounted in metal
- Blind hole: Ø 10 mm ; depth 4 mm
- Resistant to magnetic fields (weld-resistant)
- for DC and AC fields up to 100 mT
- 2 x NO contact
- PNP output
- DC 4-wire
- 10…30 VDC
Specifications
| Measurement Maximum | 0 |
| Case Material | Metal |
| Measurement Minimum | 0 |
| Output Communication Protocol | PNP |
| Input Voltage | 10-30 VDC |
| Country of Origin | DE |
