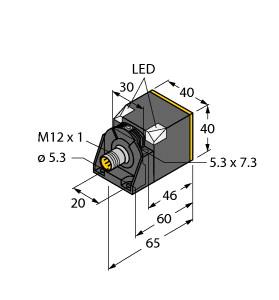

Turck Inductive Sensor, IO-Link Communication and Configuration (NI50U-CK40-IOL6X2-H1141)

https://www.branom.com/web/image/product.template/169747/image_1920?unique=c26756c
(0 review)
Inductive Sensor Features
  • IO-Link Communication and Configuration
  • Rated switching distance 50 mm
  • Non-flush
  • Rectangular
  • height 40 mm
  • Variable orientation of active face in 5 directions
  • Plastic
  • PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum view on supply voltage and switching state from any position
  • Factor 1 for all metals
  • Increased switching distance
  • Protection class IP68
  • Resistant to magnetic fields
  • Auto-compensation protects against pre-damping
  • Partially embeddable
  • DC 4-wire
  • 10…30 VDC
  • M12 x 1 connector
  • Configuration and communication via IO-Link v1.1 or via standard I/O
  • Electrical outputs independently configurable
  • Switching distance can be parametrized per output and hysteresis
  • Identification via 32-byte memory
  • Temperature monitoring with adjustable limits
  • Various timer and pulse monitoring functions

$ 216.80 216.8 USD $ 216.80

$ 216.80

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Input Voltage
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Inductive Sensor Features

  • IO-Link Communication and Configuration
  • Rated switching distance 50 mm
  • Non-flush
  • Rectangular
  • height 40 mm
  • Variable orientation of active face in 5 directions
  • Plastic
  • PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum view on supply voltage and switching state from any position
  • Factor 1 for all metals
  • Increased switching distance
  • Protection class IP68
  • Resistant to magnetic fields
  • Auto-compensation protects against pre-damping
  • Partially embeddable
  • DC 4-wire
  • 10…30 VDC
  • M12 x 1 connector
  • Configuration and communication via IO-Link v1.1 or via standard I/O
  • Electrical outputs independently configurable
  • Switching distance can be parametrized per output and hysteresis
  • Identification via 32-byte memory
  • Temperature monitoring with adjustable limits
  • Various timer and pulse monitoring functions

Specifications

Measurement Maximum 0
Case Material Plastic
Measurement Minimum 0
Output Communication Protocol Multiple
Input Voltage 10-30 VDC
Country of Origin DE
