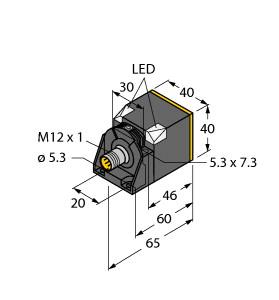

Turck Inductive Sensor, With Extended Switching Distance (NI50U-CK40-AN6X2-H1141)

Representative photo. Please check item description for details.

Turck Inductive Sensor, With Extended Switching Distance (NI50U-CK40-AN6X2-H1141)

Inductive Sensor Features

With Extended Switching Distance
Rated switching distance 50 mm
Non-flush
Rectangular
height 40 mm
Variable orientation of active face in 5 directions
Plastic
PBT‐GF30‐V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-damping
Partially embeddable
DC 3-wire
10…30 VDC
NO contact
NPN output
M12 x 1 male connector

$ 216.80 216.8 USD $ 216.80

$ 216.80

Measurement Maximum
Case Material
- Plastic
Measurement Minimum
Output Communication Protocol
- NPN
Input Voltage
- 10-30 VDC
Country of Origin
- DE

This combination does not exist.

Add to cart Buy now

Product Datasheets

Inductive Sensor Features

With Extended Switching Distance
Rated switching distance 50 mm
Non-flush
Rectangular
height 40 mm
Variable orientation of active face in 5 directions
Plastic
PBT‐GF30‐V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-damping
Partially embeddable
DC 3-wire
10…30 VDC
NO contact
NPN output
M12 x 1 male connector

Specifications

Measurement Maximum	0
Case Material	Plastic
Measurement Minimum	0
Output Communication Protocol	NPN
Input Voltage	10-30 VDC
Country of Origin	DE
