  3. Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU40U-M18MS-AP8X2-H1151)
Public Pricelist (v2)
Representative photo. Please check item description for details.

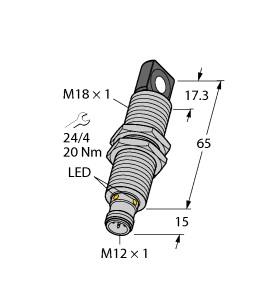

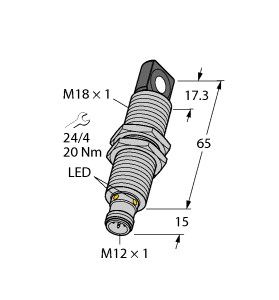

Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU40U-M18MS-AP8X2-H1151)

https://www.branom.com/web/image/product.template/171793/image_1920?unique=c26756c
(0 review)
Ultrasonic Sensor Features
  • Diffuse Mode Sensor
  • Max. range 400 mm
  • Rectangular transducer front
  • Cylindrical housing M18
  • potted
  • Connection via M12 x 1 male
  • Temperature compensation
  • Blind zone: 2.5 cm
  • Range: 40 cm
  • Resolution: 0.5 mm
  • Aperture angle of sonic cone: ±15 °
  • PNP switching output
  • NO/NC programmable
  • IO-Link

$ 319.98 319.98 USD $ 319.98

$ 319.98

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Ultrasonic Sensor Features

  • Diffuse Mode Sensor
  • Max. range 400 mm
  • Rectangular transducer front
  • Cylindrical housing M18
  • potted
  • Connection via M12 x 1 male
  • Temperature compensation
  • Blind zone: 2.5 cm
  • Range: 40 cm
  • Resolution: 0.5 mm
  • Aperture angle of sonic cone: ±15 °
  • PNP switching output
  • NO/NC programmable
  • IO-Link

Specifications

Measurement Maximum 0
Case Material Metal
Measurement Minimum 0
Output Communication Protocol Multiple
Country of Origin DE
