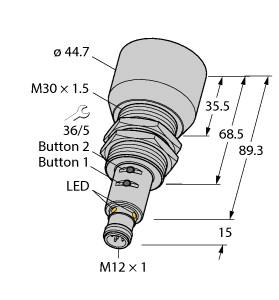

Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU600U-M30E-LIU2PN8X2T-H1151)

https://www.branom.com/web/image/product.template/171803/image_1920?unique=c26756c
(0 review)
Ultrasonic Sensor Features
  • Diffuse Mode Sensor
  • Max. range 6000 mm
  • Smooth sonic transducer face
  • Cylindrical housing M30
  • potted
  • Connection via M12 x 1 male
  • Measuring range adjustable via teach button/Easy-Teach
  • Temperature compensation
  • Blind zone: 60 cm
  • Range: 600 cm
  • Resolution: 1 mm
  • Aperture angle of sonic cone: ±15 °
  • 1 × switching output
  • PNP/NPN
  • 1 × analog output
  • 4…20 mA / 0…10 V / additional switching output
  • PNP/NPN
  • NO/NC programmable
  • Transmission of process value and parametrization via IO-link

$ 1,048.26 1048.26 USD $ 1,048.26

$ 1,048.26

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Ultrasonic Sensor Features

  • Diffuse Mode Sensor
  • Max. range 6000 mm
  • Smooth sonic transducer face
  • Cylindrical housing M30
  • potted
  • Connection via M12 x 1 male
  • Measuring range adjustable via teach button/Easy-Teach
  • Temperature compensation
  • Blind zone: 60 cm
  • Range: 600 cm
  • Resolution: 1 mm
  • Aperture angle of sonic cone: ±15 °
  • 1 × switching output
  • PNP/NPN
  • 1 × analog output
  • 4…20 mA / 0…10 V / additional switching output
  • PNP/NPN
  • NO/NC programmable
  • Transmission of process value and parametrization via IO-link

Specifications

Measurement Maximum 0
Case Material Metal
Measurement Minimum 0
Output Communication Protocol Multiple
Country of Origin DE
