  3. Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU40U-M18ES-LIU2PN8X2T-H1151)
Public Pricelist (v2)
Representative photo. Please check item description for details.

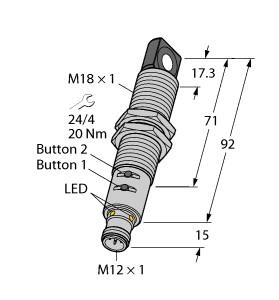

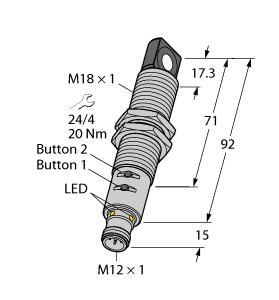

Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU40U-M18ES-LIU2PN8X2T-H1151)

https://www.branom.com/web/image/product.template/171789/image_1920?unique=c26756c
(0 review)
Ultrasonic Sensor Features
  • Diffuse Mode Sensor
  • Max. range 400 mm
  • Rectangular transducer front
  • Cylindrical housing M18
  • potted
  • Connection via M12 x 1 male
  • Teach range adjustable via pushbutton or adapter
  • Temperature compensation
  • Blind zone: 2.5 cm
  • Range: 40 cm
  • Resolution: 0.5 mm
  • Aperture angle of sonic cone: ±15 °
  • 1 × switching output
  • PNP/NPN
  • 1 × analog output
  • 4…20 mA / 0…10 V / additional switching output
  • PNP/NPN
  • NO/NC programmable
  • Transmission of process value and parametrization via IO-link

$ 534.83 534.83 USD $ 534.83

$ 534.83

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Ultrasonic Sensor Features

  • Diffuse Mode Sensor
  • Max. range 400 mm
  • Rectangular transducer front
  • Cylindrical housing M18
  • potted
  • Connection via M12 x 1 male
  • Teach range adjustable via pushbutton or adapter
  • Temperature compensation
  • Blind zone: 2.5 cm
  • Range: 40 cm
  • Resolution: 0.5 mm
  • Aperture angle of sonic cone: ±15 °
  • 1 × switching output
  • PNP/NPN
  • 1 × analog output
  • 4…20 mA / 0…10 V / additional switching output
  • PNP/NPN
  • NO/NC programmable
  • Transmission of process value and parametrization via IO-link

Specifications

Measurement Maximum 0
Case Material Metal
Measurement Minimum 0
Output Communication Protocol Multiple
Country of Origin DE
