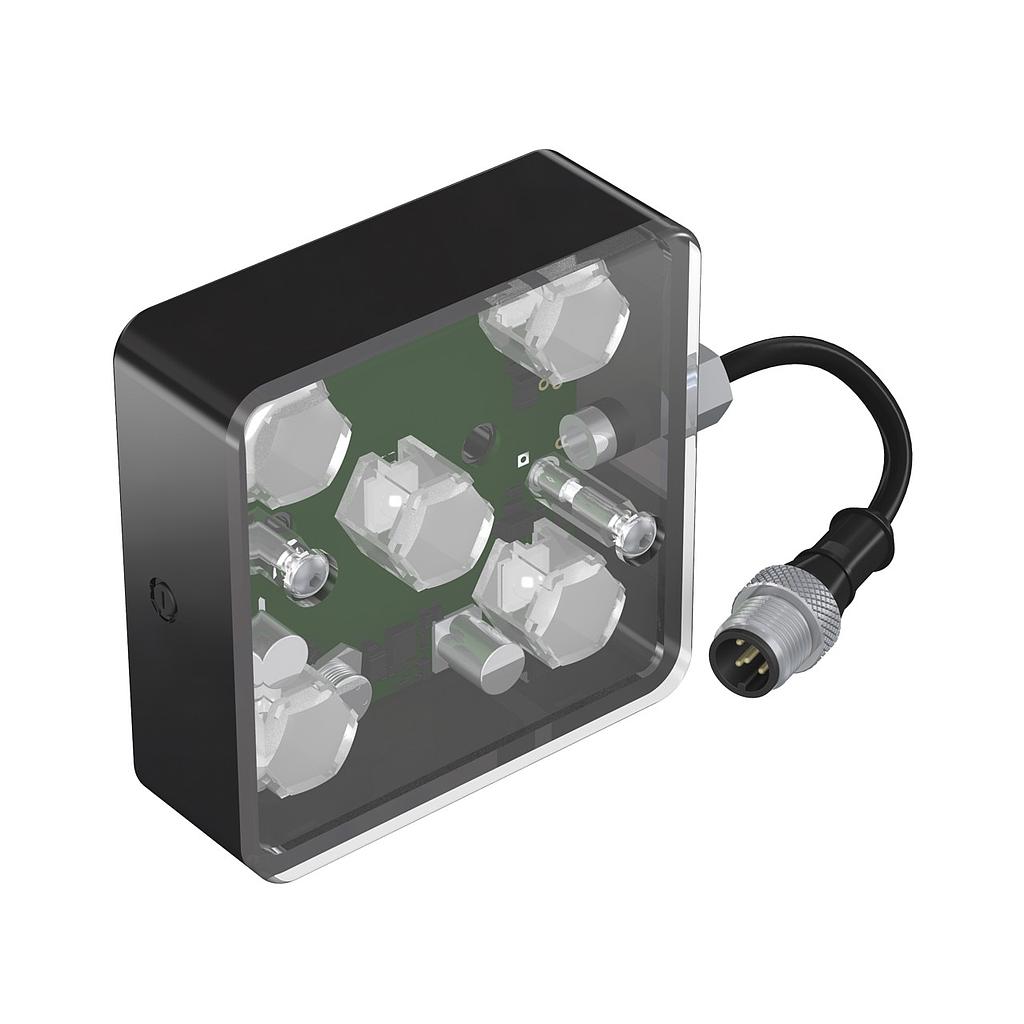

Vision Light - 70 mm Area with Potentiometer (LEDBA70XD5-PQ)
Representative photo. Please check item description for details.

Vision Light - 70 mm Area with Potentiometer (LEDBA70XD5-PQ)

https://www.branom.com/web/image/product.template/3203/image_1920?unique=c26756c
(0 review)

Features:

  • Vision Light
  • 70 mm Area with Potentiometer
  • 5 High Intensity Blue LEDs
  • 24 V dc
  • Clear Diffusing Plastic Window
  • Requires Cable MQDC20-xxx
    • Power: DC
  • Max Current Color: 500 mA
  • Max Operating Temperature: 50 °C
  • Housing Style: Rectangular
  • Device Type: Area Light
  • Housing Material_: Low-Carbon Steel
  • Physical Dimensions: 76.2 x 76.2 x 29.2 mm
  • Supply Voltage: 24 V DC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Number of Input Pins/Conductors: 5
  • Color: Blue
  • QD Type/Cable Length: M12; requires mating cordset
  • Intensity Adjustment: Potentiometer
  • Connection Type: Integral QD
