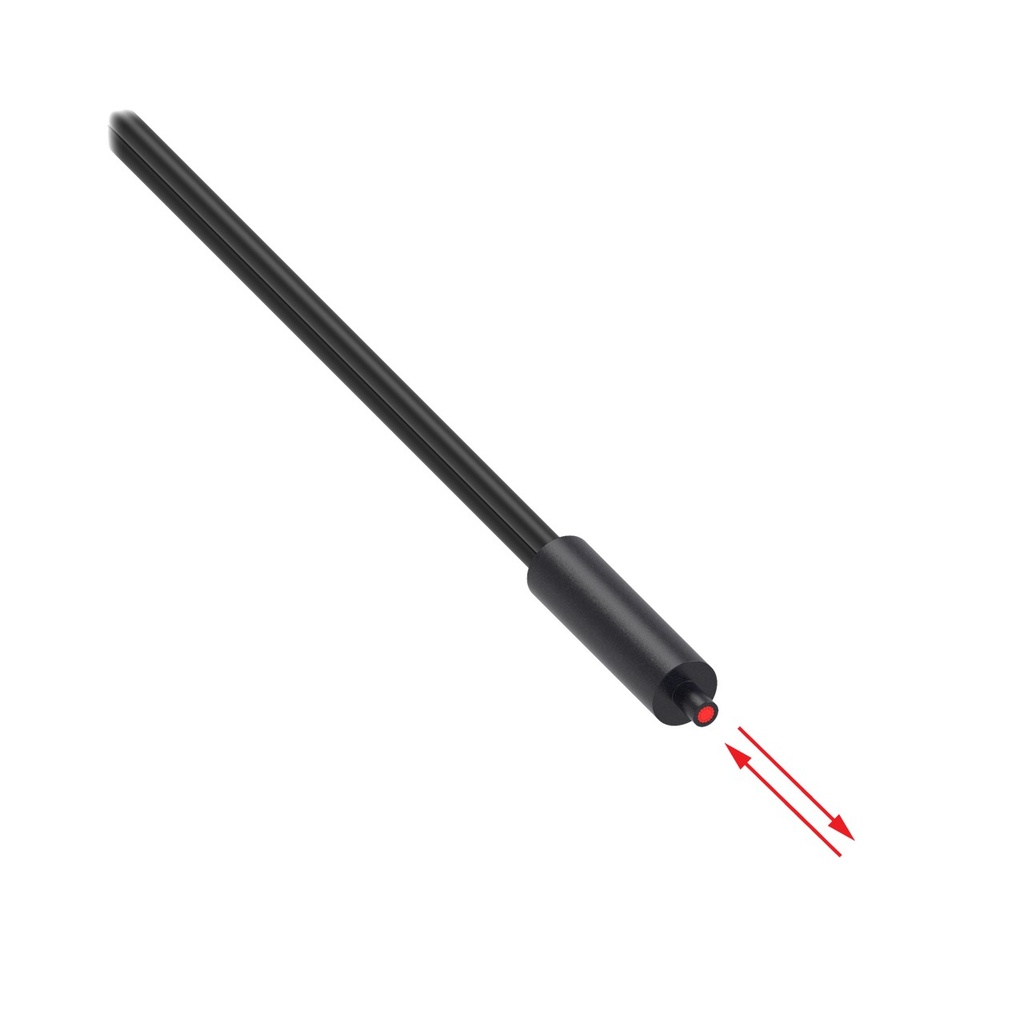

Plastic Fiber, Diffuse Reflective (PBCFP46UMLR)
Representative photo. Please check item description for details.

Plastic Fiber, Diffuse Reflective (PBCFP46UMLR)

https://www.branom.com/web/image/product.template/203899/image_1920?unique=c26756c
(0 review)

Features:

    Plastic Fiber, Diffuse Reflective; Core Dia.: 1.0 mm & 16 x 0.25; Fiber Length 2 m; Coaxial, 5.9 mm dia. Plastic Ferrule, 2.3 mm dia. Probe; Free Cut
    • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Coaxial
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Ferrule
  • Tariff Fiber Meters: 20 fbm
  • Min Bend Radius: 5 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 2.3 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Probe
  • Termination: Free Cut
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.0 & 16 x 0.3 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 5.9 mm
  • Fiber Length: 2 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Probe
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 5 mm
  • Min Repeat Bending Endurance: 10000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 5 mm

$ 136.00 136.0 USD $ 136.00

$ 136.00

Not Available For Sale
