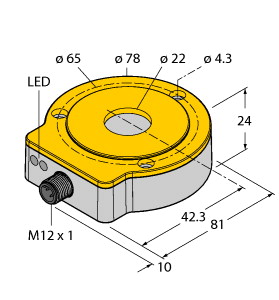

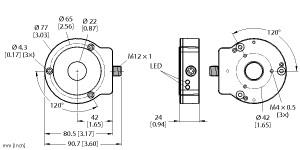

Turck Contactless Encoder, Incremental: 1 … 5000 ppr, Premium Line (RI360P0-QR24M0-INCRX2-H1181)
Contactless Encoder Features
- Incremental: 1 … 5000 ppr
- Premium Line
- Resolution
- incremental 1024 ppr
- Compact
- rugged housing
- Many mounting possibilities
- Status displayed via LED
- Immune to electromagnetic interference
- 1024 pulses per revolution (default)
- 360
- 512
- 1000
- 1024
- 2048
- 2500
- 3600
- 4096
- parametr. via Easy-Teach
- Free parametrization of the pulse number in the range from 1 to 5000 via PACT
- ware
- ™
- Position of z-track set via Easy-Teach
- Burst function
- absolute angular position output incrementally per Easy-Teach pulse
- 10…30 VDC
- Male M12 x 1
- 8-pin
- Push-pull A
- B
- Z
- A (inverse)
- B (inverse)
Contactless Encoder Features
- Incremental: 1 … 5000 ppr
- Premium Line
- Resolution
- incremental 1024 ppr
- Compact
- rugged housing
- Many mounting possibilities
- Status displayed via LED
- Immune to electromagnetic interference
- 1024 pulses per revolution (default)
- 360
- 512
- 1000
- 1024
- 2048
- 2500
- 3600
- 4096
- parametr. via Easy-Teach
- Free parametrization of the pulse number in the range from 1 to 5000 via PACT
- ware
- ™
- Position of z-track set via Easy-Teach
- Burst function
- absolute angular position output incrementally per Easy-Teach pulse
- 10…30 VDC
- Male M12 x 1
- 8-pin
- Push-pull A
- B
- Z
- A (inverse)
- B (inverse)
Specifications
| Measurement Maximum | 0 |
| Case Material | Metal & Plastic |
| Measurement Minimum | 0 |
| Country of Origin | DE |
