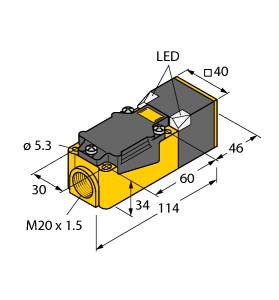

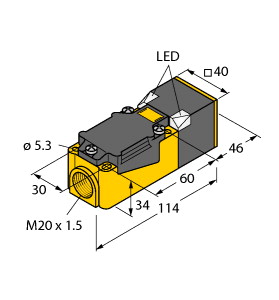

Turck Inductive Sensor, With Extended Temperature Range (NI35-CP40-VP4X2/S97)
Inductive Sensor Features
- With Extended Temperature Range
- Rated switching distance 35 mm
- Non-flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 9 directions
- Plastic
- PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Temperatures up to -40 °C
- DC 4-wire
- 10…65 VDC
- Changeover contact
- PNP output
- Terminal chamber
Inductive Sensor Features
- With Extended Temperature Range
- Rated switching distance 35 mm
- Non-flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 9 directions
- Plastic
- PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Temperatures up to -40 °C
- DC 4-wire
- 10…65 VDC
- Changeover contact
- PNP output
- Terminal chamber
Specifications
| Measurement Maximum | 0 |
| Case Material | Plastic |
| Measurement Minimum | 0 |
| Output Communication Protocol | PNP |
| Input Voltage | 10-65 VDC |
| Country of Origin | DE |
