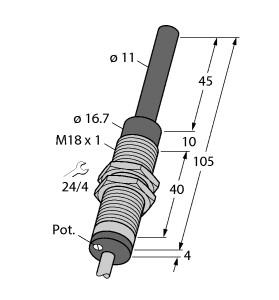

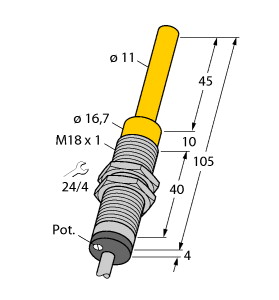

Turck Inductive Sensor, With Analog Output (WI40-M18-LIU5)

https://www.branom.com/web/image/product.template/172467/image_1920?unique=c26756c
(0 review)
Inductive Sensor Features
  • With Analog Output
  • Measuring range 0 mm
  • Max. measuring range 40 mm
  • Cable length (L) 2 m
  • Non-flush
  • Threaded barrel
  • M18 x 1
  • Chrome-plated brass
  • Potentiometer to adjust the characteristic
  • Actuated via short-circuiting ring
  • blind hole or the like
  • 4‐wire
  • 15…30 VDC
  • Analog output
  • 0…10 V and 4…20 mA
  • Cable connection

$ 441.30 441.3 USD $ 441.30

$ 441.30

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Inductive Sensor Features

  • With Analog Output
  • Measuring range 0 mm
  • Max. measuring range 40 mm
  • Cable length (L) 2 m
  • Non-flush
  • Threaded barrel
  • M18 x 1
  • Chrome-plated brass
  • Potentiometer to adjust the characteristic
  • Actuated via short-circuiting ring
  • blind hole or the like
  • 4‐wire
  • 15…30 VDC
  • Analog output
  • 0…10 V and 4…20 mA
  • Cable connection

Specifications

Measurement Maximum 0
Case Material Metal
Measurement Minimum 0
Output Communication Protocol 4-20 mA, 0-10 VDC
Country of Origin DE
