Representative photo. Please check item description for details.

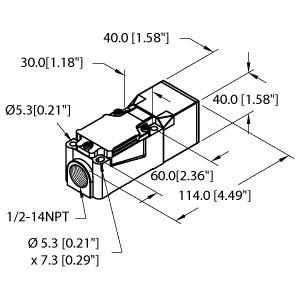

Turck Inductive Sensor, With Analog Output (NI25-CP40-LIU/S10)
Inductive Sensor Features
- With Analog Output
- Measuring range 5 mm
- Max. measuring range 25 mm
- Rated switching distance 25 mm
- Non-flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 9 directions
- Plastic
- PBT-GF30-VO
- High-luminance corner LEDs
- Optimum view of operating voltage and switching state from any position
- Thread
- 1/2-14 NPT
- 4‐wire
- 15…30 VDC
- Analog output
- 0…10 V and 0…20 mA
- Terminal chamber
Inductive Sensor Features
- With Analog Output
- Measuring range 5 mm
- Max. measuring range 25 mm
- Rated switching distance 25 mm
- Non-flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 9 directions
- Plastic
- PBT-GF30-VO
- High-luminance corner LEDs
- Optimum view of operating voltage and switching state from any position
- Thread
- 1/2-14 NPT
- 4‐wire
- 15…30 VDC
- Analog output
- 0…10 V and 0…20 mA
- Terminal chamber
Specifications
| Measurement Maximum | 0 |
| Case Material | Plastic |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 0-10 VDC |
| Input Voltage | 15-30 VDC |
| Country of Origin | DE |
