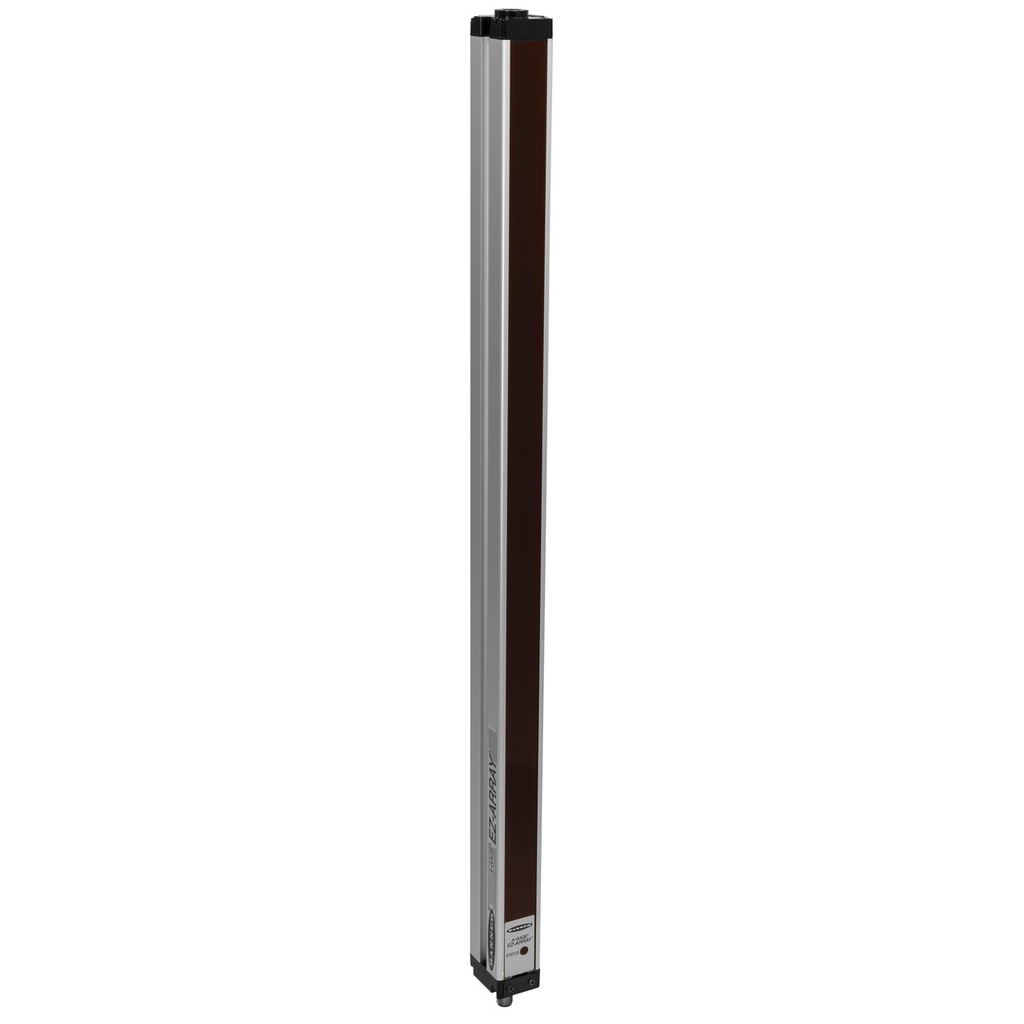

EZ-ARRAY 5mm OPTICAL SPACING X 1500mm RECVR with IO-Link Integral Euro 8 pins (EA5R1500XKQ)

https://www.branom.com/web/image/product.template/3082/image_1920?unique=c26756c
(0 review)

Features:

  • EA5R1500XKQ EZ-ARRAY 5mm OPTICAL SPACING X 1500mm RECVR with IO-Link Integral Euro 8 pins
    • Feature: Discrete Outputs: PNP / Push-Pull
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 12-30 VDC
  • Sensing Mode (Detailed): Receiver
  • Beam Spacing: 5 mm
  • Device Type: Two-Piece
  • Housing Length: 1578 mm
  • Max Relative Humidity: 95%
  • Number of Beams: 300
  • Housing Material_: Aluminum
  • Analog Output: 0 to 10 VDC
  • Feature: IO Link: Yes
  • Array Length: 1500 mm
  • Quick Disconnect Type: M12
  • Discrete Outputs: PNP / Push-Pull
  • Emitter/Receiver Range: 0.4 to 4 m

$ 2,694.00 2694.0 USD $ 2,694.00

$ 2,694.00

Not Available For Sale

    This combination does not exist.

    Contact Us
