Representative photo. Please check item description for details.

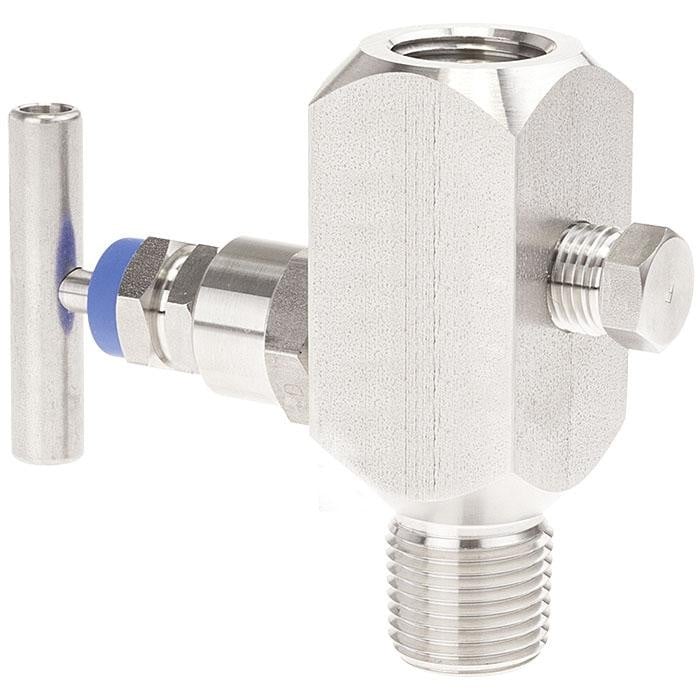

Wika IV10 Series Needle Valve, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 6000 psi
Applications of the needle valve
- Shut off and vent pressure measuring instruments
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
Special features of the needle valve
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Enhanced safety due to blow-out proof bonnet design
- Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
- Customer-specific combination of valves and instruments (hook-up) on request
Features
- IV10 1/2 NPT F - 1/2 NPT F 316/316L VENT 1/4NPT F Graphite 6k
- Design : needle valve
- 1/2 NPT female - 1/2 NPT female
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Vent connection: 1/4" NPT female with plug
- Nominal pressure: 6000 psi / 420 bar
- Material packing: Graphite
- NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
Applications of the needle valve
- Shut off and vent pressure measuring instruments
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
Special features of the needle valve
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Enhanced safety due to blow-out proof bonnet design
- Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
- Customer-specific combination of valves and instruments (hook-up) on request
Features
- IV10 1/2 NPT F - 1/2 NPT F 316/316L VENT 1/4NPT F Graphite 6k
- Design : needle valve
- 1/2 NPT female - 1/2 NPT female
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Vent connection: 1/4" NPT female with plug
- Nominal pressure: 6000 psi / 420 bar
- Material packing: Graphite
- NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
Specifications
| Valve: Design | Needle |
