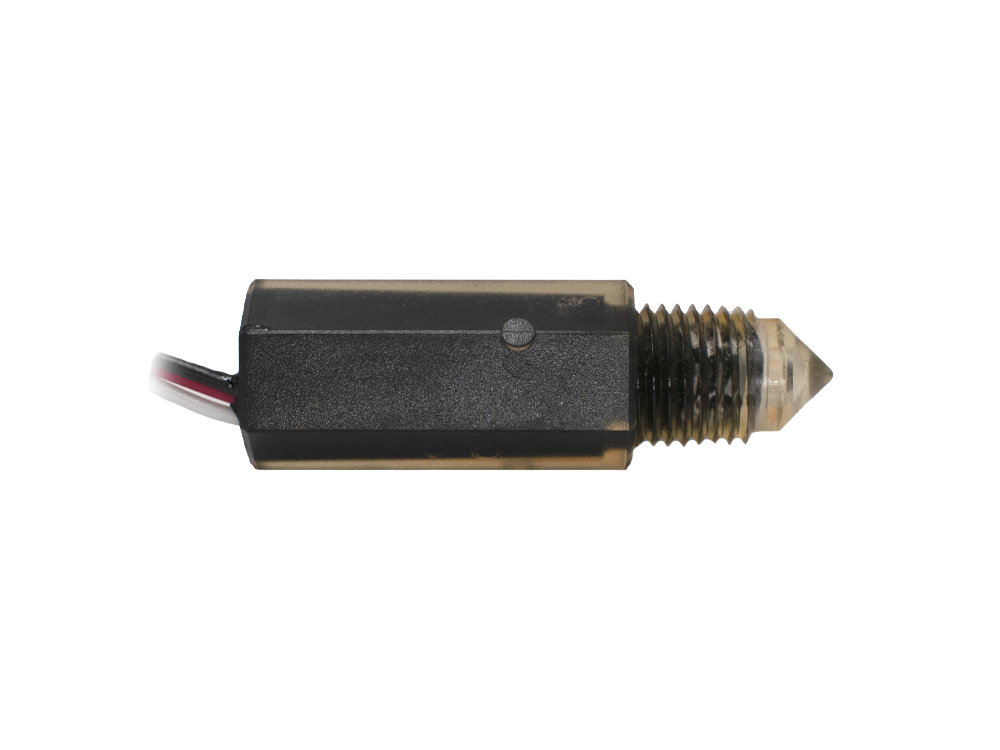

Electro-Optic Level Sensor, Polysulfone, 1/4", 10-28 VDC Wet, 3/8" conduit, ELS-1100
ELS-1100 Series Single-Point Level Switch is a compact, economical, no moving parts polysulfone level sensor with built-in switching electronics. A variety of mountings, power requirements and electrical terminations are available. These level switch
units are suitable for high, low or intermediate level detection. Installation is simple and quick through the tank top, bottom or side. The sensor offers ±1 mm repeatability and broad liquid compatibility. They are not recommended for use
in any liquid that crystallizes or leaves a solid residue.
Sku: 143585
Model: ELS-1100
Sensor Type: Electro-Optic
Primary Material Of Construction: Plastic
Wetted Materials: Polysulfone
Stem Material: Polysulfone
Float Material: N/A
Float Diameter: N/A
Actuation Level: N/A
Min. Liquid SG: N/A
Maximum Pressure: 150 psi
Minimum Temperature: 0°F
Maximum Temperature: 176°F
Mounting Size: 1/4" NPT Male
Mounting Style: Vertical or Horizontal
Electrical Termination: 12" Long, 22 AWG, PVC Leads
Switch Type: TTL/CMOS Compatible
Switch Operation: Normally Open: (Non-Reversible)
Input: 10-28 VDC
Output: Sink 40 mA max, up to 30 VDC
Approvals: UL Recognized
