Electro-Optic Level Sensor, Polysulfone, 1/2"Straight Thread, 10-28 VDC Wet, ELS-1100

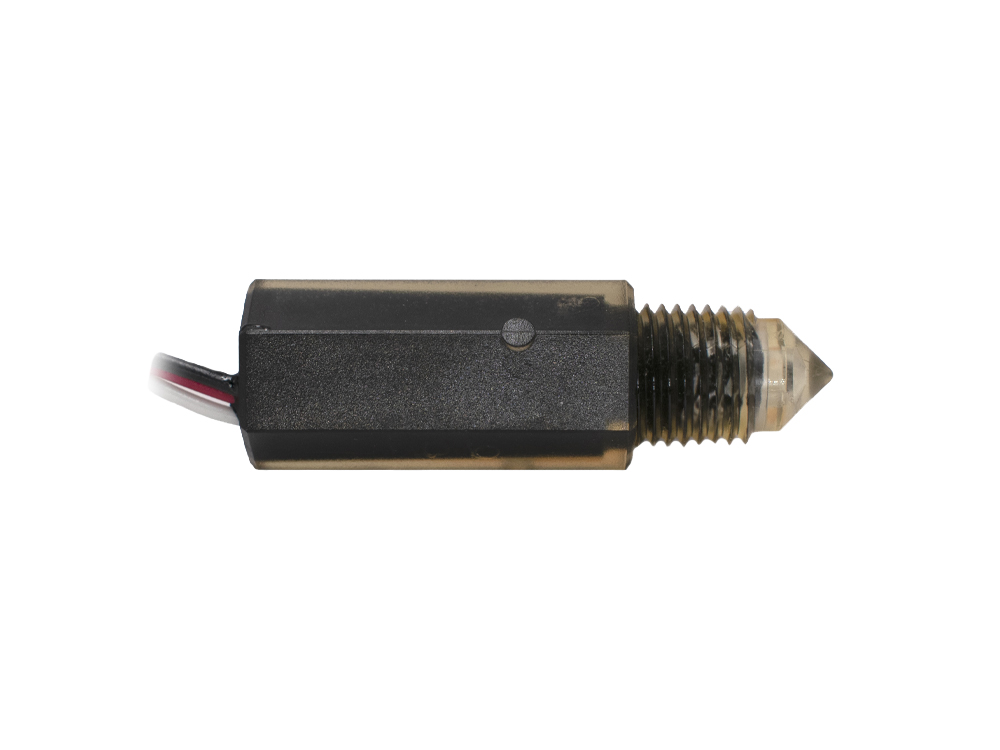

Representative photo. Please check item description for details.

Electro-Optic Level Sensor, Polysulfone, 1/2"Straight Thread, 10-28 VDC Wet, ELS-1100

https://www.branom.com/web/image/product.template/513695/image_1920?unique=c26756c
(0 review)

ELS-1100 Series Single-Point Level Switch is a compact, economical, no moving parts polysulfone level sensor with built-in switching electronics. A variety of mountings, power requirements and electrical terminations are available. These level switch

units are suitable for high, low or intermediate level detection. Installation is simple and quick through the tank top, bottom or side. The sensor offers ±1 mm repeatability and broad liquid compatibility. They are not recommended for use

in any liquid that crystallizes or leaves a solid residue.

  • Sku: 143585
  • Model: ELS-1100
  • Sensor Type: Electro-Optic
  • Primary Material Of Construction: Plastic
  • Wetted Materials: Polysulfone
  • Stem Material: Polysulfone
  • Float Material: N/A
  • Float Diameter: N/A
  • Actuation Level: N/A
  • Min. Liquid SG: N/A
  • Maximum Pressure: 150 psi
  • Minimum Temperature: 0°F
  • Maximum Temperature: 176°F
  • Mounting Size: 1/4" NPT Male
  • Mounting Style: Vertical or Horizontal
  • Electrical Termination: 12" Long, 22 AWG, PVC Leads
  • Switch Type: TTL/CMOS Compatible
  • Switch Operation: Normally Open: (Non-Reversible)
  • Input: 10-28 VDC
  • Output: Sink 40 mA max, up to 30 VDC
  • Approvals: UL Recognized

    • $ 193.88 193.88 USD $ 193.88

    $ 193.88

    Not Available For Sale

    • Measurement Minimum

    This combination does not exist.

    Contact Us

    Share

    ELS-1100 Series Single-Point Level Switch is a compact, economical, no moving parts polysulfone level sensor with built-in switching electronics. A variety of mountings, power requirements and electrical terminations are available. These level switch

    units are suitable for high, low or intermediate level detection. Installation is simple and quick through the tank top, bottom or side. The sensor offers ±1 mm repeatability and broad liquid compatibility. They are not recommended for use

    in any liquid that crystallizes or leaves a solid residue.

  • Sku: 143585
  • Model: ELS-1100
  • Sensor Type: Electro-Optic
  • Primary Material Of Construction: Plastic
  • Wetted Materials: Polysulfone
  • Stem Material: Polysulfone
  • Float Material: N/A
  • Float Diameter: N/A
  • Actuation Level: N/A
  • Min. Liquid SG: N/A
  • Maximum Pressure: 150 psi
  • Minimum Temperature: 0°F
  • Maximum Temperature: 176°F
  • Mounting Size: 1/4" NPT Male
  • Mounting Style: Vertical or Horizontal
  • Electrical Termination: 12" Long, 22 AWG, PVC Leads
  • Switch Type: TTL/CMOS Compatible
  • Switch Operation: Normally Open: (Non-Reversible)
  • Input: 10-28 VDC
  • Output: Sink 40 mA max, up to 30 VDC
  • Approvals: UL Recognized

    • Specifications

    Measurement Minimum 0
