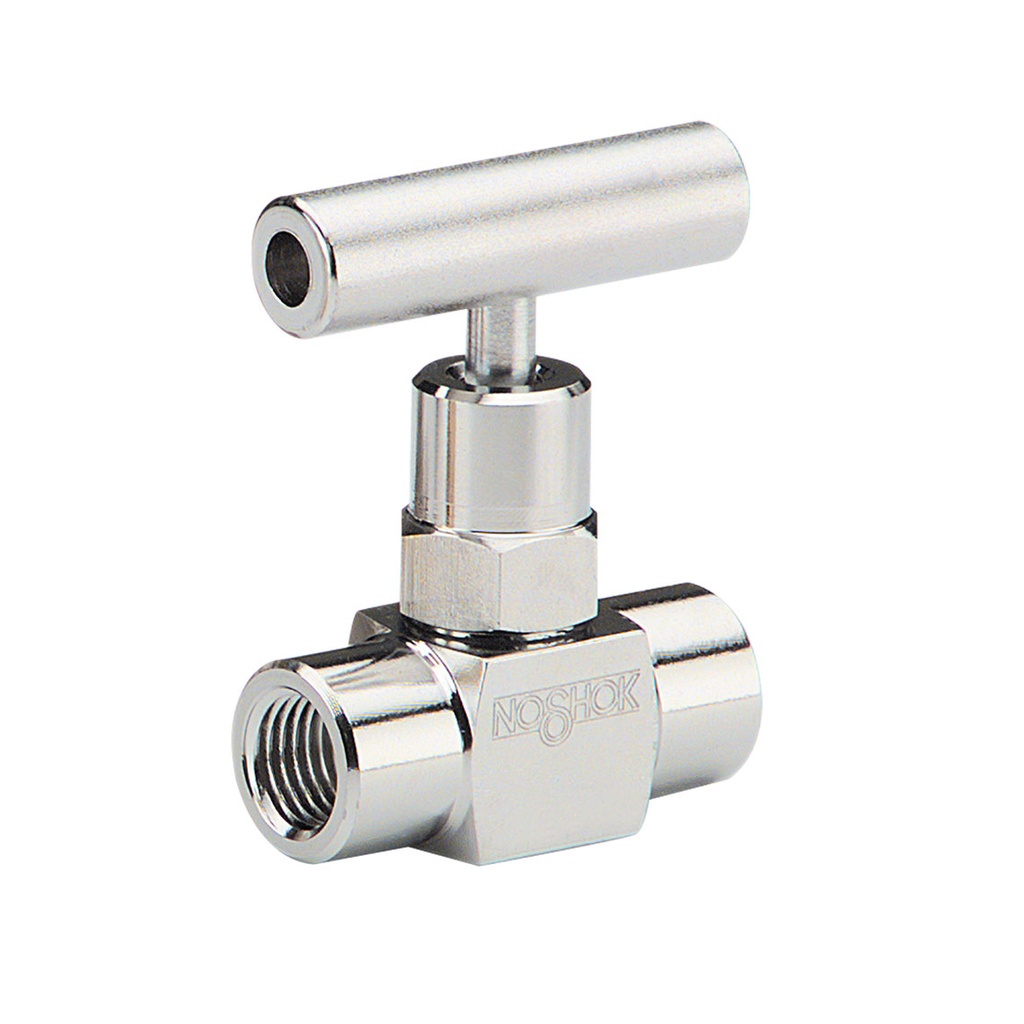

100 Series Mini, Hard Seat Needle Valve, 9/16-18 Unified Fine UNF 2B, Female x Female, Extended, 316 SS, 0.172" Orifice
- Compact size valve built for maximum durability and robust performance in the toughest applications
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Compact size valve built for maximum durability and robust performance in the toughest applications
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve: Brand | NoShok |
| Valve: Design | Needle |
| Valve: Pipe Size | 9/16"-18 |
| Valve: Body Material | Stainless Steel, Stainless Steel |
| Valve: Flow Factor (Cv) | 0.42 |
| Valve: Pressure (psi) | > 500 to 1000 psi (34.47 to 68.95 bar) |
