VACON NXS Series, 525-690 VAC, 3 Phase, 60 HP / 45 KW, 80 Amp, IP21/NEMA 1, NXS00806-A2L0SSS-A1A2000000

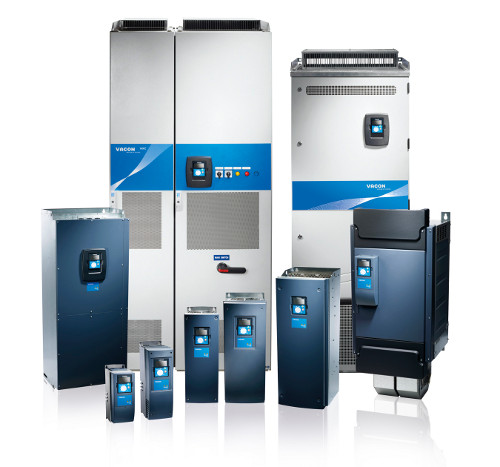

Representative photo. Please check item description for details.

VACON NXS Series, 525-690 VAC, 3 Phase, 60 HP / 45 KW, 80 Amp, IP21/NEMA 1, NXS00806-A2L0SSS-A1A2000000

https://www.branom.com/web/image/product.template/487401/image_1920?unique=c26756c
(0 review)

The VACON NX family of air-cooled and liquid-cooled drives is designed for a broad range of demanding industrial applications. It comprises wall-mounted, enclosed and system drives in the power range 0.55 kW-5.3 MW.

Liquid-cooled variants are well-suited to applications where air quality is critical, space is limited, and highly efficient heat transfer is required.

VACON NX drives deliver maximum motor control performance and dynamics for both single-shaft machines and drive systems. Configurable I/O and fieldbuses cater for any connectivity need. You can customize drive functions to obtain cost savings and deeper machine integration.

  • NXS00806-A2L0SSS-A1A2000000
  • Vacon NXS Frequency Converter
  • 525 – 690 Vac (640-1100 Vdc), 80 Amp,IP21/NEMA1
  • Alpha-numeric display
  • IEC61800-3, 2. enviroment
  • No Brake
  • A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
  • B Slot: A2,2RO(NO/NC)
  • C Slot: No board
  • D Slot: No board
  • E Slot: No board
  • Manual: English
  • Frame 08
  • Other options according to Model code

  • AC Drive: Brand
  • AC Drive: Series
  • AC Drive: Power Rating
  • AC Drive: Output
  • AC Drive: Voltage
  • AC Drive: IP Rating

This combination does not exist.

Contact Us

Share

The VACON NX family of air-cooled and liquid-cooled drives is designed for a broad range of demanding industrial applications. It comprises wall-mounted, enclosed and system drives in the power range 0.55 kW-5.3 MW.

Liquid-cooled variants are well-suited to applications where air quality is critical, space is limited, and highly efficient heat transfer is required.

VACON NX drives deliver maximum motor control performance and dynamics for both single-shaft machines and drive systems. Configurable I/O and fieldbuses cater for any connectivity need. You can customize drive functions to obtain cost savings and deeper machine integration.

  • NXS00806-A2L0SSS-A1A2000000
  • Vacon NXS Frequency Converter
  • 525 – 690 Vac (640-1100 Vdc), 80 Amp,IP21/NEMA1
  • Alpha-numeric display
  • IEC61800-3, 2. enviroment
  • No Brake
  • A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
  • B Slot: A2,2RO(NO/NC)
  • C Slot: No board
  • D Slot: No board
  • E Slot: No board
  • Manual: English
  • Frame 08
  • Other options according to Model code

Specifications

AC Drive: Brand Danfoss
AC Drive: Series VACON NXS
AC Drive: Power Rating 3 Phase
AC Drive: Output 60 HP / 45 KW
AC Drive: Voltage 525-690 VAC
AC Drive: IP Rating IP21
