World-Beam Qs18 Receiver (QS18VN6R-13475)
Representative photo. Please check item description for details.

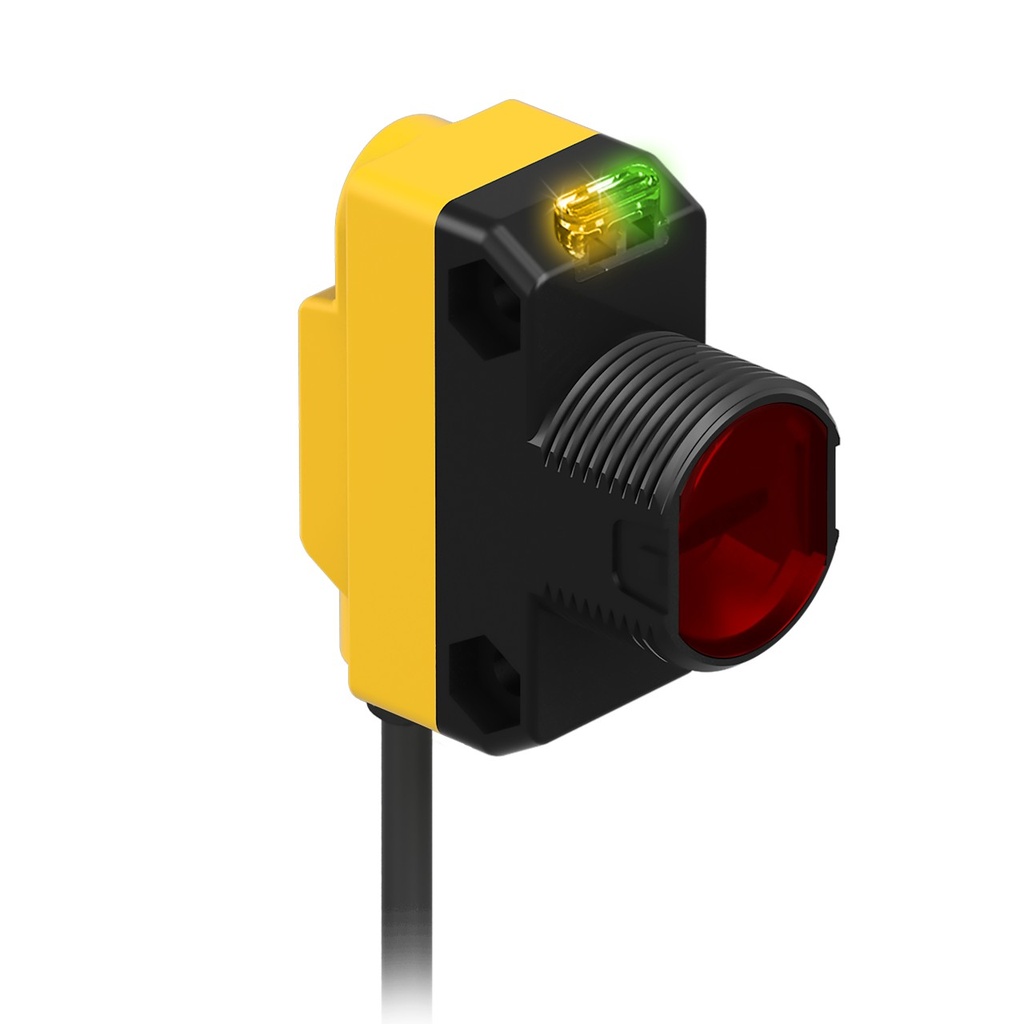

World-Beam Qs18 Receiver (QS18VN6R-13475)

https://www.branom.com/web/image/product.template/204237/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Receiver; Range: 20 m; Input: 10-30 V dc; Add User Gain Adjustment; Output: Complementary NPN; 6 ft (2 m) cable
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam: Visible Red or IR
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.75 ms ON/0.375 ms OFF
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 87.00 87.0 USD $ 87.00

$ 87.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
