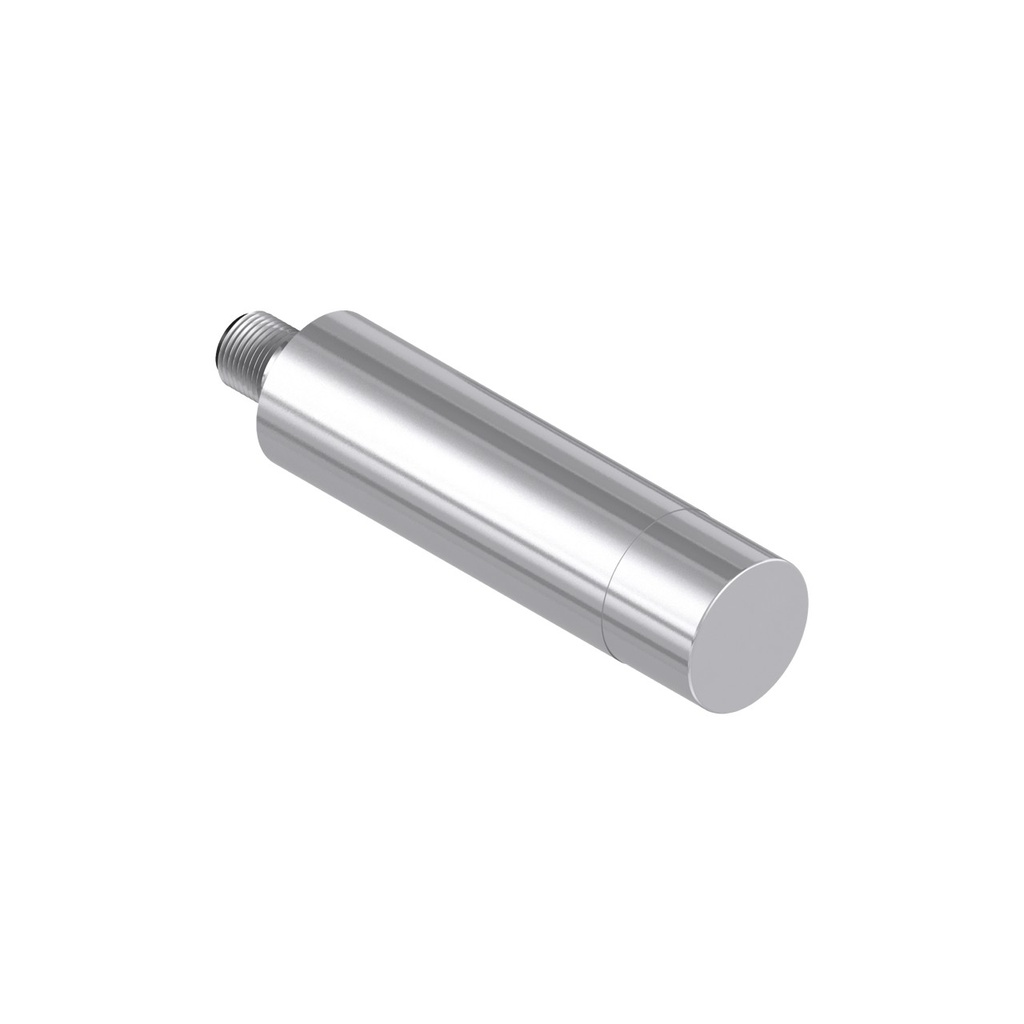

M25U Series Ultrasonic Receiver (M25URB-13466 W/30)
Representative photo. Please check item description for details.

M25U Series Ultrasonic Receiver (M25URB-13466 W/30)

https://www.branom.com/web/image/product.template/203837/image_1920?unique=c26756c
(0 review)

Features:

    M25U Series Ultrasonic Receiver; Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc; Rating: IP68; Output: Bipolar (1 NPN & 1 PNP); 30ft 5-wire Plus Drain Cable With Polypropylene Jacket
  • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67/69
  • Sensing Beam: Ultrasonic
  • Housing Style: Barrel
  • Max Sensing Distance: 500 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Device Type: Sensor
  • Housing Material_: SS
  • Feature: Washdown Rated: Yes
  • Frequency: 140 kHz
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Feature: Timing (Hold/Delay): No
  • Min Response Time: 3 ms
  • Feature: Ultrasonic: Yes
  • Discrete (Switched) Outputs: Bipolar (NPN & PNP)
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 9 m
  • Barrel Thread: M25
