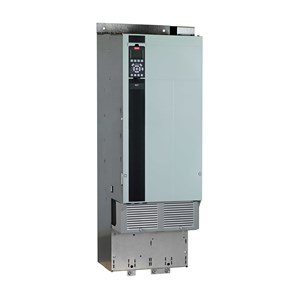

Representative photo. Please check item description for details.
VLT AutomationDrive FC 302, 380-500 VAC, 3 Phase, 200 HP / 132 KW, IP20 / Chassis, FC-302N132T5E20H4XGC7XXSXXXXAXB2CXXXXD0
- Product Group: (FC-) VLT® AutomationDrive FC-
- Series: 302
- Power Rating: (N132) (N132) 132 KW / 200 HP
- Phase: (T) Three phase
- Mains Voltage: (5) 380 - 500 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H4) RFI class A1 (C2)
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (C) Coated PCB
- Mains Option: (7) Fuse
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (B2) MCB-112 PTC Therm. Card
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (D0) MCB-107 24V DC backup
- Frame Size: D3H
- Power 110% (NO) [KW]: 160
- Power 150% (HO) [KW]: 132
- Height [mm]: 909,0
- Height w/ Regen/Loadshare [mm]: 1004,0
- Width w/ no C options [mm]: 250,0
- Depth [mm]: 375,0
- Depth with Option A/B [mm]: 375,0
- Calculated Net Weight [kg]: 62
- Continuous Current (NO) [A] 3x380-440VAC.: 315
- Intermittent Current (NO) [A] 3x380-440VAC.: 346
- Continuous Current (NO) [A] 3x440-500VAC: 302
- Intermittent Current (NO) [A] 3x440-500VAC: 332
- Continuous Current (HO) [A] 3x380-440VAC.: 260
- Intermittent Current (HO) [A] 3x380-440VAC.: 390
- Continuous Current (HO) [A] 3x440-500VAC: 240
- Intermittent Current (HO) [A] 3x440-500VAC: 360
- Power Loss NO [W] 3x380-440VAC.: 3770
- Power Loss NO [W] 3x440-500VAC: 3628
- Power Loss HO [W] 3x380-440VAC.: 2923
- Power Loss HO [W] 3x440-500VAC: 2689
- kVA: 180
- Product Group: (FC-) VLT® AutomationDrive FC-
- Series: 302
- Power Rating: (N132) (N132) 132 KW / 200 HP
- Phase: (T) Three phase
- Mains Voltage: (5) 380 - 500 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H4) RFI class A1 (C2)
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (C) Coated PCB
- Mains Option: (7) Fuse
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (B2) MCB-112 PTC Therm. Card
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (D0) MCB-107 24V DC backup
- Frame Size: D3H
- Power 110% (NO) [KW]: 160
- Power 150% (HO) [KW]: 132
- Height [mm]: 909,0
- Height w/ Regen/Loadshare [mm]: 1004,0
- Width w/ no C options [mm]: 250,0
- Depth [mm]: 375,0
- Depth with Option A/B [mm]: 375,0
- Calculated Net Weight [kg]: 62
- Continuous Current (NO) [A] 3x380-440VAC.: 315
- Intermittent Current (NO) [A] 3x380-440VAC.: 346
- Continuous Current (NO) [A] 3x440-500VAC: 302
- Intermittent Current (NO) [A] 3x440-500VAC: 332
- Continuous Current (HO) [A] 3x380-440VAC.: 260
- Intermittent Current (HO) [A] 3x380-440VAC.: 390
- Continuous Current (HO) [A] 3x440-500VAC: 240
- Intermittent Current (HO) [A] 3x440-500VAC: 360
- Power Loss NO [W] 3x380-440VAC.: 3770
- Power Loss NO [W] 3x440-500VAC: 3628
- Power Loss HO [W] 3x380-440VAC.: 2923
- Power Loss HO [W] 3x440-500VAC: 2689
- kVA: 180
Specifications
| AC Drive: Brand | Danfoss |
| AC Drive: Series | FC-302 |
| AC Drive: Power Rating | 3 Phase |
| AC Drive: Output | 200 HP / 132 KW |
| AC Drive: Voltage | 380-500 VAC |
| AC Drive: IP Rating | IP20 |
