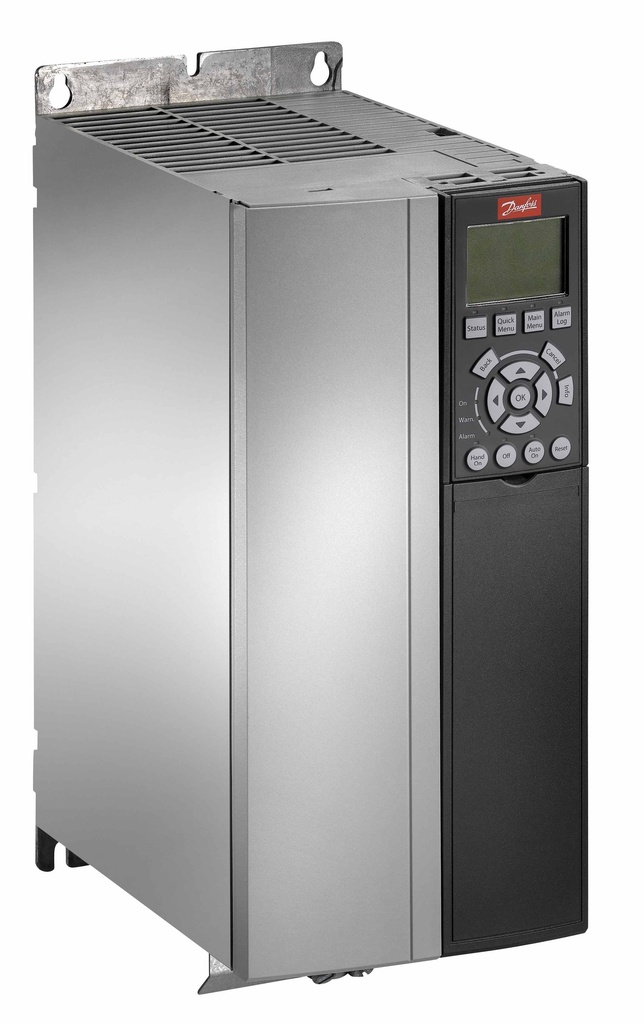

VLT Aqua Drive FC 202, 20 HP / 15 KW, 380-480 VAC, 3 Phase, NEMA 4X Backplate, IP66, FC-202P15KT4P66H1XGC1XXSXXXXAQBXCXXXXDX
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
- Frequency converter
- Other options according to Model code
FC-202P15KT4P66H1XGC1XXSXXXXAQBXCXXXXDX
VLT® AQUA Drive FC-202
(P15K) 15 KW / 20 HP, Three phase
380 - 480 VAC, (P66) IP66 / NEMA 4X Backplate
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: B1
No C1 option, No D option
Modbus TCP MCA 122, No B Option
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
- Frequency converter
- Other options according to Model code
FC-202P15KT4P66H1XGC1XXSXXXXAQBXCXXXXDX
VLT® AQUA Drive FC-202
(P15K) 15 KW / 20 HP, Three phase
380 - 480 VAC, (P66) IP66 / NEMA 4X Backplate
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: B1
No C1 option, No D option
Modbus TCP MCA 122, No B Option
Specifications
| AC Drive: Brand | Danfoss |
| AC Drive: Series | FC-202 |
| AC Drive: Power Rating | 3 Phase |
| AC Drive: Output | 20 HP / 15 KW |
| AC Drive: Voltage | 380-480 VAC |
| AC Drive: IP Rating | IP66 |
