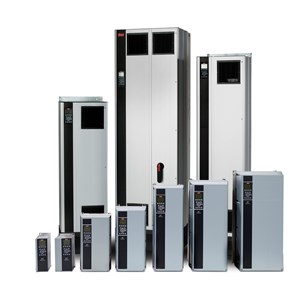

Representative photo. Please check item description for details.

VLT AQUA Drive FC-202 Series, 25 HP / 18.5 KW, 380-480 VAC, 3 Phase, IP66 / NEMA 4X Backplate, FC-202P18KT4P66H2XGX3SXSXXXXAXB0CXXXXDX

https://www.branom.com/web/image/product.template/197650/image_1920?unique=c26756c
(0 review)

  • Product Group: (FC-) VLT® AQUA Drive FC-
  • Series: 202
  • Power Rating: (P18K) (P18K) 18.5 KW / 25 HP
  • Phase: (T) Three phase
  • Mains Voltage: (4) 380 - 480 VAC
  • Enclosure: (P66) (P66) IP66 / NEMA 4X Backplate
  • RFI Filter: (H2) RFI Filter
  • Brake - Safe Stop: (X) No brake chopper
  • LCP: (G) Graphical Loc. Cont. Panel
  • Coating PCB: (X) Not coated PCB
  • Mains Option: (3) Mains Disconnect + Fuse
  • Adaptation A: (S) Smooth imperial cable entr
  • Adaptation B: (X) No adaptation
  • Software Release: (SXXX) Latest release std. SW.
  • Software Language Pack: (X) Standard Language Pack
  • A Option: (AX) No A Option
  • B Option: (B0) MCB-109 I/O, RTC Back-up
  • C0 Option MCO: (CX) No C0 option
  • C1 Option: (X) No C1 option
  • C Option Software: (XX) No software option
  • D Option: (DX) No D option
  • Frame Size: B1
  • Height [mm]: 480,0
  • Width w/ no C options [mm]: 242,0
  • Depth [mm]: 260,0
  • Depth with Option A/B [mm]: 260,0
  • Calculated Net Weight [kg]: 23.2
  • Power Loss NO [W]: 465
  • Power Loss NO [W]: 465
  • Power Loss HO [W]: 379
  • Power Loss HO [W]: 379

  • AC Drive: Brand
  • AC Drive: Series
  • AC Drive: Power Rating
  • AC Drive: Output
  • AC Drive: Voltage
  • AC Drive: IP Rating

This combination does not exist.

  • Product Group: (FC-) VLT® AQUA Drive FC-
  • Series: 202
  • Power Rating: (P18K) (P18K) 18.5 KW / 25 HP
  • Phase: (T) Three phase
  • Mains Voltage: (4) 380 - 480 VAC
  • Enclosure: (P66) (P66) IP66 / NEMA 4X Backplate
  • RFI Filter: (H2) RFI Filter
  • Brake - Safe Stop: (X) No brake chopper
  • LCP: (G) Graphical Loc. Cont. Panel
  • Coating PCB: (X) Not coated PCB
  • Mains Option: (3) Mains Disconnect + Fuse
  • Adaptation A: (S) Smooth imperial cable entr
  • Adaptation B: (X) No adaptation
  • Software Release: (SXXX) Latest release std. SW.
  • Software Language Pack: (X) Standard Language Pack
  • A Option: (AX) No A Option
  • B Option: (B0) MCB-109 I/O, RTC Back-up
  • C0 Option MCO: (CX) No C0 option
  • C1 Option: (X) No C1 option
  • C Option Software: (XX) No software option
  • D Option: (DX) No D option
  • Frame Size: B1
  • Height [mm]: 480,0
  • Width w/ no C options [mm]: 242,0
  • Depth [mm]: 260,0
  • Depth with Option A/B [mm]: 260,0
  • Calculated Net Weight [kg]: 23.2
  • Power Loss NO [W]: 465
  • Power Loss NO [W]: 465
  • Power Loss HO [W]: 379
  • Power Loss HO [W]: 379

Specifications

AC Drive: Brand Danfoss
AC Drive: Series FC-202
AC Drive: Power Rating 3 Phase
AC Drive: Output 25 HP / 18.5 KW
AC Drive: Voltage 380-480 VAC
AC Drive: IP Rating IP66
