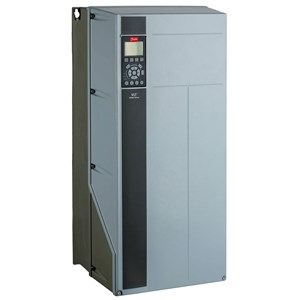

Representative photo. Please check item description for details.
VLT AQUA Drive FC-202 Series,125 HP / 90 KW, 380-480 VAC, 3 Phase, IP66 / NEMA 4X202P90KT4E66H2XGCXXXSXXXXAXBXCXXXXDX
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (P90K) (P90K) 90 KW / 125 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E66) (E66) IP66 / NEMA 4X
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (C) Coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: C2
- Power 110% (NO) [KW]: 90
- Power 150% (HO) [KW]: 75
- Height [mm]: 770,0
- Width w/ no C options [mm]: 370,0
- Depth [mm]: 335,0
- Depth with Option A/B [mm]: 335,0
- Calculated Net Weight [kg]: 61.5
- Continuous Current (NO) [A] 3x380-440VAC: 177
- Intermittent Current (NO) [A] 3x380-440VAC: 195
- Continuous Current (NO) [A] 3x440-480VAC: 160
- Intermittent Current (NO) [A] 3x440-480VAC: 176
- Continuous Current (HO) [A] 3x380-440VAC: 147
- Intermittent Current (HO) [A] 3x380-440VAC: 220
- Continuous Current (HO) [A] 3x440-480VAC: 130
- Intermittent Current (HO) [A] 3x440-480VAC: 195
- Power Loss NO [W] 3x380-440VAC: 1474
- Power Loss NO [W] 3x440-480VAC: 1474
- Power Loss HO [W] 3x380-440VAC: 1232
- Power Loss HO [W] 3x440-480VAC: 1232
- kVA: 123
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (P90K) (P90K) 90 KW / 125 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E66) (E66) IP66 / NEMA 4X
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (C) Coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: C2
- Power 110% (NO) [KW]: 90
- Power 150% (HO) [KW]: 75
- Height [mm]: 770,0
- Width w/ no C options [mm]: 370,0
- Depth [mm]: 335,0
- Depth with Option A/B [mm]: 335,0
- Calculated Net Weight [kg]: 61.5
- Continuous Current (NO) [A] 3x380-440VAC: 177
- Intermittent Current (NO) [A] 3x380-440VAC: 195
- Continuous Current (NO) [A] 3x440-480VAC: 160
- Intermittent Current (NO) [A] 3x440-480VAC: 176
- Continuous Current (HO) [A] 3x380-440VAC: 147
- Intermittent Current (HO) [A] 3x380-440VAC: 220
- Continuous Current (HO) [A] 3x440-480VAC: 130
- Intermittent Current (HO) [A] 3x440-480VAC: 195
- Power Loss NO [W] 3x380-440VAC: 1474
- Power Loss NO [W] 3x440-480VAC: 1474
- Power Loss HO [W] 3x380-440VAC: 1232
- Power Loss HO [W] 3x440-480VAC: 1232
- kVA: 123
Specifications
| AC Drive: Brand | Danfoss |
| AC Drive: Series | FC-202 |
| AC Drive: Power Rating | 3 Phase |
| AC Drive: Output | 125 HP / 90 KW |
| AC Drive: Voltage | 380-480 VAC |
| AC Drive: IP Rating | IP66 |
