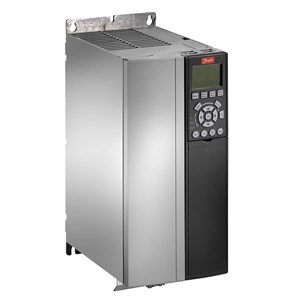

Representative photo. Please check item description for details.
VLT AQUA Drive FC-202 Series, 25 HP / 18.5 KW, 380-480 VAC, 3 Phase, IP20 / Chassis, FC-202P18KT4E20H2XGXXXXSXXXXAXBXCXXXXDX
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (P18K) (P18K) 18.5 KW / 25 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (X) Not coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: B3
- Power 110% (NO) [KW]: 18.5
- Power 160% (HO) [KW]: 15
- Height [mm]: 399,0
- Width w/ no C options [mm]: 165,0
- Width w/ one C options [mm]: 205,0
- Width w/ two C options [mm]: 225,0
- Depth [mm]: 249,0
- Depth with Option A/B [mm]: 262,0
- Calculated Net Weight [kg]: 12
- Continuous Current (NO) [A] 3x380-440VAC: 37.5
- Intermittent Current (NO) [A] 3x380-440VAC: 41.2
- Continuous Current (NO) [A] 3x440-480VAC: 34
- Intermittent Current (NO) [A] 3x440-480VAC: 37.4
- Continuous Current (HO) [A] 3x380-440VAC: 32
- Intermittent Current (HO) [A] 3x380-440VAC: 51.2
- Continuous Current (HO) [A] 3x440-480VAC: 27
- Intermittent Current (HO) [A] 3x440-480VAC: 43.2
- Power Loss NO [W] 3x380-440VAC: 465
- Power Loss NO [W] 3x440-480VAC: 465
- Power Loss HO [W] 3x380-440VAC: 379
- Power Loss HO [W] 3x440-480VAC: 379
- kVA: 26
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (P18K) (P18K) 18.5 KW / 25 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (X) Not coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: B3
- Power 110% (NO) [KW]: 18.5
- Power 160% (HO) [KW]: 15
- Height [mm]: 399,0
- Width w/ no C options [mm]: 165,0
- Width w/ one C options [mm]: 205,0
- Width w/ two C options [mm]: 225,0
- Depth [mm]: 249,0
- Depth with Option A/B [mm]: 262,0
- Calculated Net Weight [kg]: 12
- Continuous Current (NO) [A] 3x380-440VAC: 37.5
- Intermittent Current (NO) [A] 3x380-440VAC: 41.2
- Continuous Current (NO) [A] 3x440-480VAC: 34
- Intermittent Current (NO) [A] 3x440-480VAC: 37.4
- Continuous Current (HO) [A] 3x380-440VAC: 32
- Intermittent Current (HO) [A] 3x380-440VAC: 51.2
- Continuous Current (HO) [A] 3x440-480VAC: 27
- Intermittent Current (HO) [A] 3x440-480VAC: 43.2
- Power Loss NO [W] 3x380-440VAC: 465
- Power Loss NO [W] 3x440-480VAC: 465
- Power Loss HO [W] 3x380-440VAC: 379
- Power Loss HO [W] 3x440-480VAC: 379
- kVA: 26
Specifications
| AC Drive: Brand | Danfoss |
| AC Drive: Series | FC-202 |
| AC Drive: Power Rating | 3 Phase |
| AC Drive: Output | 25 HP / 18.5 KW |
| AC Drive: Voltage | 380-480 VAC |
| AC Drive: IP Rating | IP20 |
