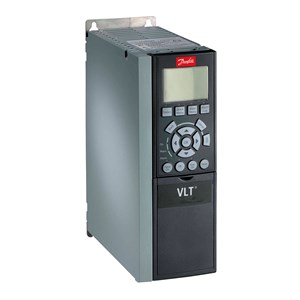

Representative photo. Please check item description for details.
VLT AutomationDrive FC 302, 380-500 VAC, 3 Phase, 1.0 HP / 0.75 KW, IP20 / Chassis, FC-302PK75T5E20H1BGXXXXSXXXXAXBXCXXXXDX
- Product Group: (FC-) VLT® AutomationDrive FC-
- Series: 302
- Power Rating: (PK75) (PK75) 0.75 KW / 1.0 HP
- Phase: (T) Three phase
- Mains Voltage: (5) 380 - 500 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H1) (H1) RFI Class A1/B (C1)
- Brake - Safe Stop: (B) Brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (X) Not coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: A2
- Power 160% (HO) [KW]: 0.75
- Height [mm]: 268,0
- Width w/ no C options [mm]: 90,0
- Width w/ one C options [mm]: 130,0
- Width w/ two C options [mm]: 150,0
- Depth [mm]: 205,0
- Depth with Option A/B [mm]: 220,0
- Calculated Net Weight [kg]: 4.6
- Continuous Current (HO) [A] 3x380-440VAC.: 2.4
- Intermittent Current (HO) [A] 3x380-440VAC.: 3.84
- Continuous Current (HO) [A] 3x440-500VAC: 2.1
- Intermittent Current (HO) [A] 3x440-500VAC: 3.36
- Power Loss HO [W] 3x380-440VAC.: 46
- Power Loss HO [W] 3x440-500VAC: 46
- kVA: 1.66
- Product Group: (FC-) VLT® AutomationDrive FC-
- Series: 302
- Power Rating: (PK75) (PK75) 0.75 KW / 1.0 HP
- Phase: (T) Three phase
- Mains Voltage: (5) 380 - 500 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H1) (H1) RFI Class A1/B (C1)
- Brake - Safe Stop: (B) Brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (X) Not coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: A2
- Power 160% (HO) [KW]: 0.75
- Height [mm]: 268,0
- Width w/ no C options [mm]: 90,0
- Width w/ one C options [mm]: 130,0
- Width w/ two C options [mm]: 150,0
- Depth [mm]: 205,0
- Depth with Option A/B [mm]: 220,0
- Calculated Net Weight [kg]: 4.6
- Continuous Current (HO) [A] 3x380-440VAC.: 2.4
- Intermittent Current (HO) [A] 3x380-440VAC.: 3.84
- Continuous Current (HO) [A] 3x440-500VAC: 2.1
- Intermittent Current (HO) [A] 3x440-500VAC: 3.36
- Power Loss HO [W] 3x380-440VAC.: 46
- Power Loss HO [W] 3x440-500VAC: 46
- kVA: 1.66
Specifications
| AC Drive: Brand | Danfoss |
| AC Drive: Series | FC-302 |
| AC Drive: Power Rating | 3 Phase |
| AC Drive: Output | 1.0 HP / 0.75 KW |
| AC Drive: Voltage | 380-500 VAC |
| AC Drive: IP Rating | IP20 |
