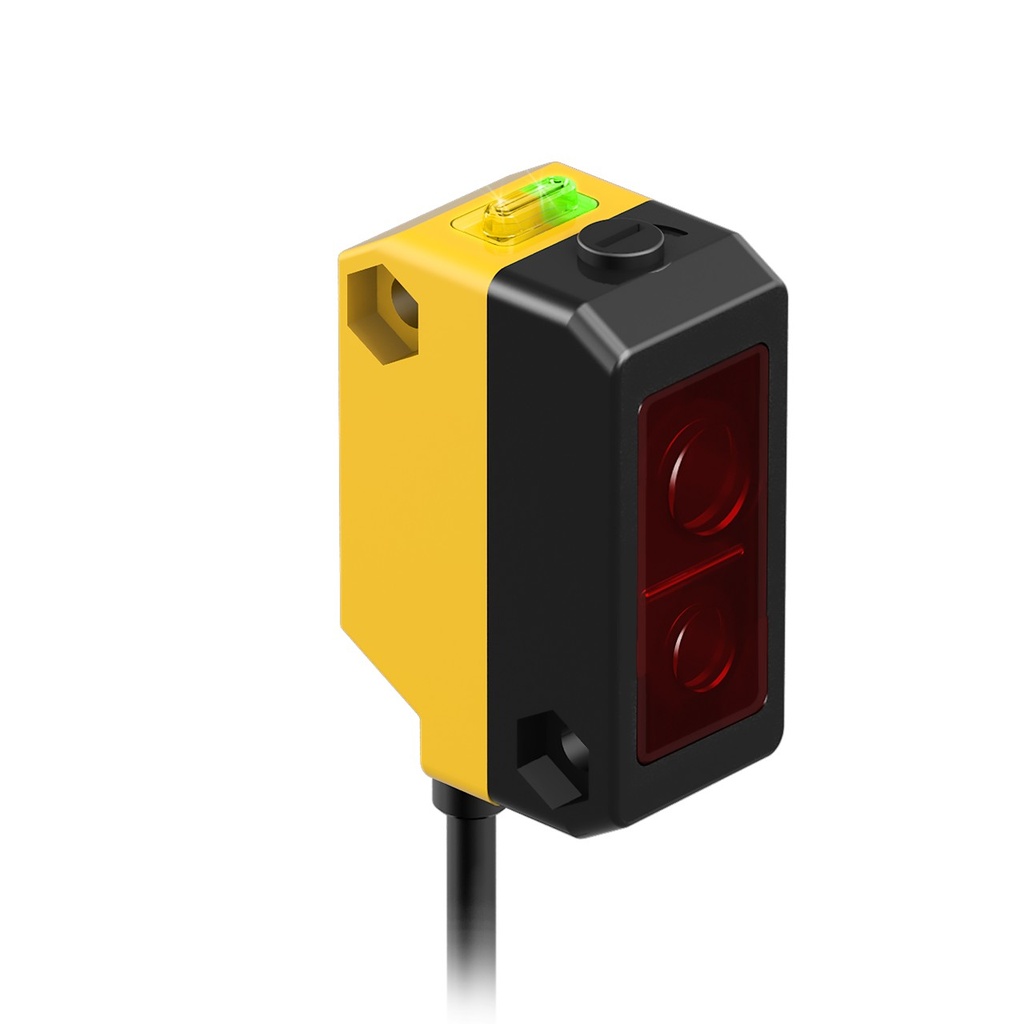

World-Beam: Adjustable Field Background Suppression (QS18VP6AF40Q5)
Representative photo. Please check item description for details.

World-Beam: Adjustable Field Background Suppression (QS18VP6AF40Q5)

https://www.branom.com/web/image/product.template/204231/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 15 to 40mm; Input:10-30V dc; Outputs: Complementary PNP; 6 in. Pigtail EURO-Style Pigtail QD Connector
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 200 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 250
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 640
  • Housing Style: Rectangular
  • Max Sensing Distance: 40 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 2.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Mechanical Screw
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 145.00 145.0 USD $ 145.00

$ 145.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
