  2. All Products
  3. Mid-West 120 SS Differential Pressure Gauge, 4.5" Dial, 0 to 6000 psig (0 to 10 psid), 1/4 NPTF Back Mount, SS Tag & Wire, 2" CS Pipe Mounting Kit
Public Pricelist (v2)

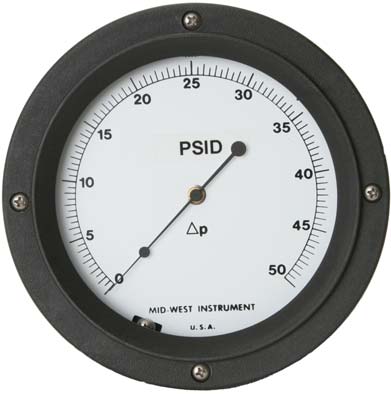

Representative photo. Please check item description for details.

Mid-West 120 SS Differential Pressure Gauge, 4.5" Dial, 0 to 6000 psig (0 to 10 psid), 1/4 NPTF Back Mount, SS Tag & Wire, 2" CS Pipe Mounting Kit

https://www.branom.com/web/image/product.template/513381/image_1920?unique=c26756c
(0 review)

Model 120 – The Mid-West Instrument piston type gauge is our most versatile and customizable differential pressure gauge to fit your most demanding requirements. Available with multiple switch options including Hazardous location options. With a Full scale accuracy of ±3/2/3% combined with Differential pressure dial scales of 0-5 PSID to 0-110 PSID this rugged design is ready to do the job.

Features

  • 6000 P.S.I.G. working pressure
  • 316L S.S. body
  • Adjusting screws & end plugs
  • Stainless steel piston
  • Ceramic magnet
  • Buna-N seals
  • 4-1/2" round dial
  • ¼" FNPT back connections
  • "Engineered plastic" gauge case with shatter-resistant acrylic lens
  • Panel mount is standard
  • ASME B40.100 Grade B accuracy ± 3-2-3% full scale (ascending)
  • Stainless Steel tag and wire
  • Carbon Steel 2” Pipe Mounting Kit (not available with electrical configurations C, D, E or F)

$ 587.78 587.78 USD $ 587.78

$ 587.78

Not Available For Sale

  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Case Material
  • Gauge: Wetted Material
  • Gauge: Wetted Material
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range
  • Gauge: Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Model 120 – The Mid-West Instrument piston type gauge is our most versatile and customizable differential pressure gauge to fit your most demanding requirements. Available with multiple switch options including Hazardous location options. With a Full scale accuracy of ±3/2/3% combined with Differential pressure dial scales of 0-5 PSID to 0-110 PSID this rugged design is ready to do the job.

Features

  • 6000 P.S.I.G. working pressure
  • 316L S.S. body
  • Adjusting screws & end plugs
  • Stainless steel piston
  • Ceramic magnet
  • Buna-N seals
  • 4-1/2" round dial
  • ¼" FNPT back connections
  • "Engineered plastic" gauge case with shatter-resistant acrylic lens
  • Panel mount is standard
  • ASME B40.100 Grade B accuracy ± 3-2-3% full scale (ascending)
  • Stainless Steel tag and wire
  • Carbon Steel 2” Pipe Mounting Kit (not available with electrical configurations C, D, E or F)

Specifications

Gauge: Brand Mid-West
Gauge: Product Unit of Measure psid, psig
Gauge: Process Connection Location Back Mount
Gauge: Case Material Stainless Steel
Gauge: Wetted Material Ceramic Magnet, Stainless Steel
Gauge: Dial Size 4-1/2 in (110 & 115 mm)
Gauge: Process Connection Size 1/4 NPT Female
Gauge: Accuracy ±3%
Gauge: Measuring Principle Piston
Gauge: Pressure Type Differential Pressure
Gauge: Model 120
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Type Differential Gauge
