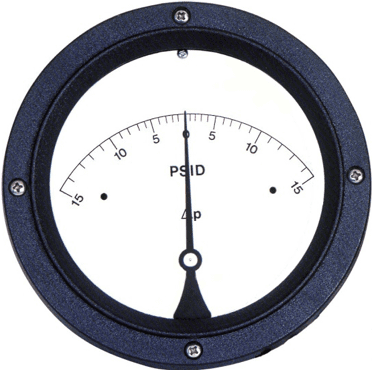

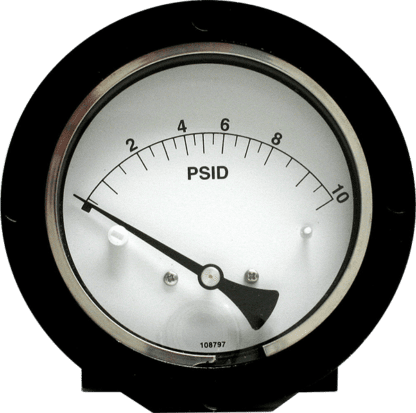

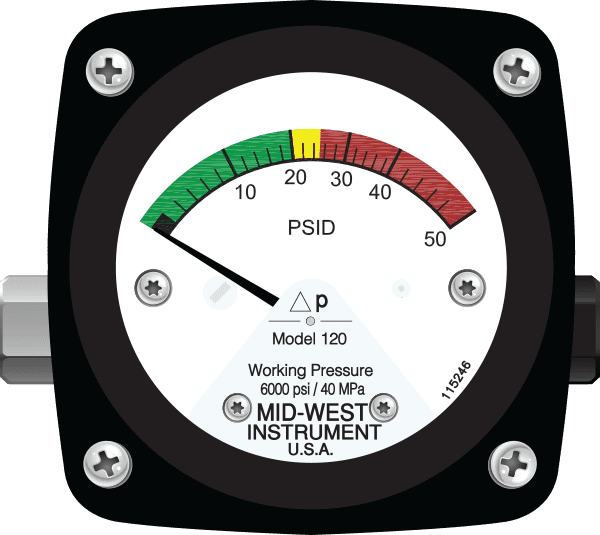

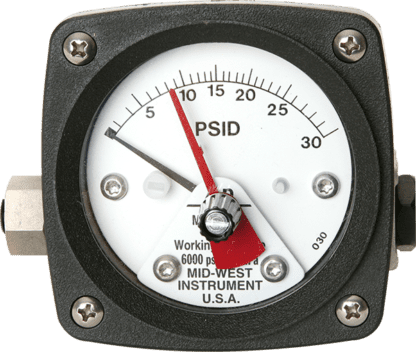

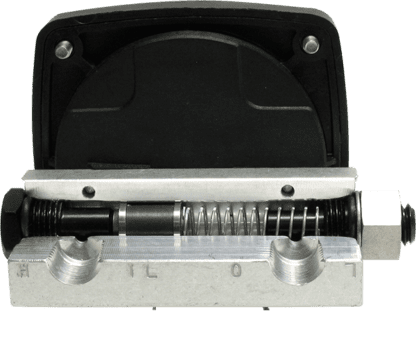

Mid-West 120 Aluminum Differential Pressure Gauge, 2.5" Dial, 0 to 3000 psig (0 to 10 psid), 1/4 NPTF Back Mount

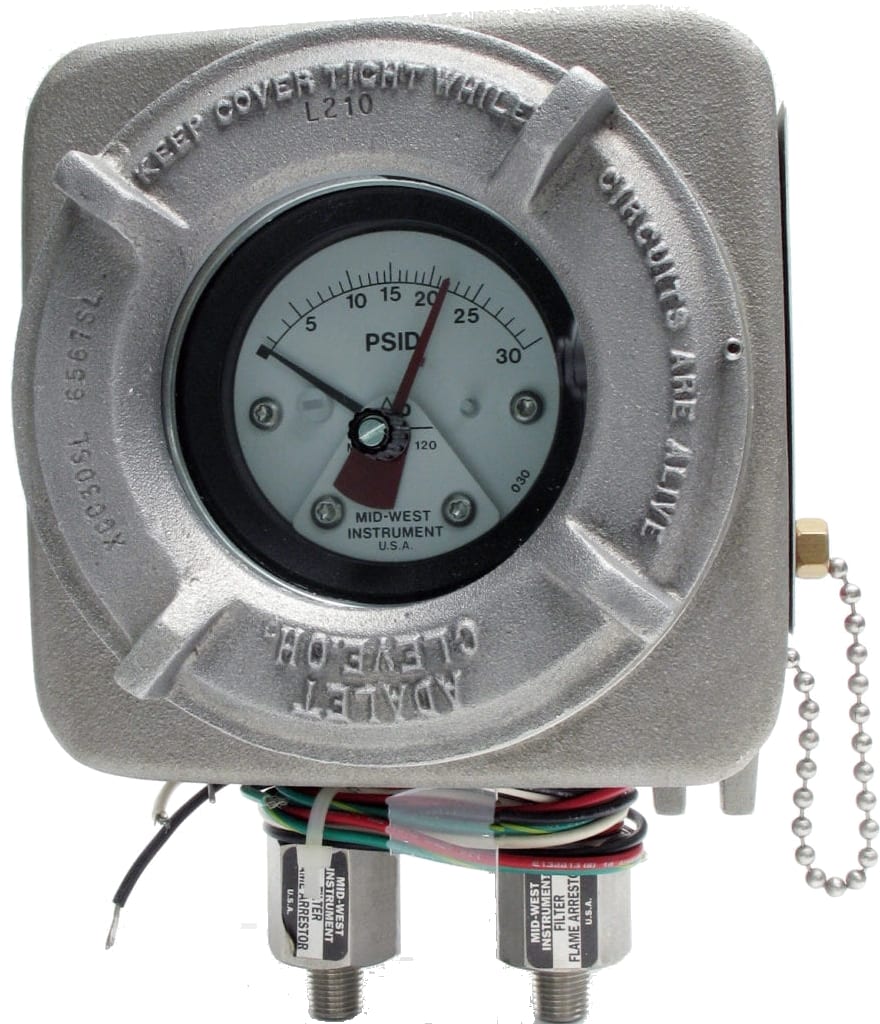

Model 120 – The Mid-West Instrument piston type gauge is our most versatile and customizable differential pressure gauge to fit your most demanding requirements. Available with multiple switch options including Hazardous location options. With a Full scale accuracy of ±3/2/3% combined with Differential pressure dial scales of 0-5 PSID to 0-110 PSID this rugged design is ready to do the job.
Model 120 – The Mid-West Instrument piston type gauge is our most versatile and customizable differential pressure gauge to fit your most demanding requirements. Available with multiple switch options including Hazardous location options. With a Full scale accuracy of ±3/2/3% combined with Differential pressure dial scales of 0-5 PSID to 0-110 PSID this rugged design is ready to do the job.
Specifications
| Gauge: Brand | Mid-West, Mid-West |
| Gauge: Product Unit of Measure | psig, psid |
| Gauge: Process Connection Location | Back Mount |
| Gauge: Case Material | Plastic |
| Gauge: Wetted Material | Ceramic Magnet, Stainless Steel, Copper Alloy (Brass) |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | 1/4 NPT Female |
| Gauge: Accuracy | ±3%, ±3% |

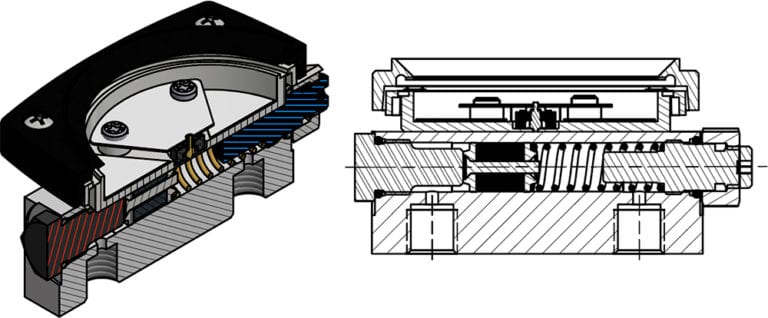

| Gauge: Measuring Principle | Piston |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Model | 120 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Dial Indicating Gauge |
