  3. Mid-West 120 Aluminum Differential Pressure Gauge, 2.5" Dial, 0 to 3000 psig (0 to 10 psid), 1/4 NPTF Back Mount
Public Pricelist (v2)
Representative photo. Please check item description for details.

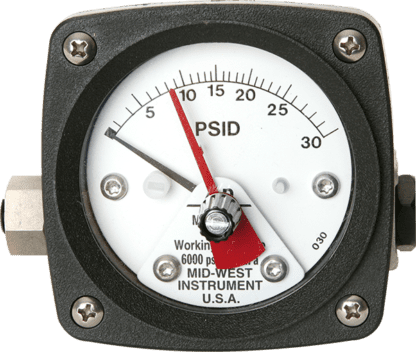

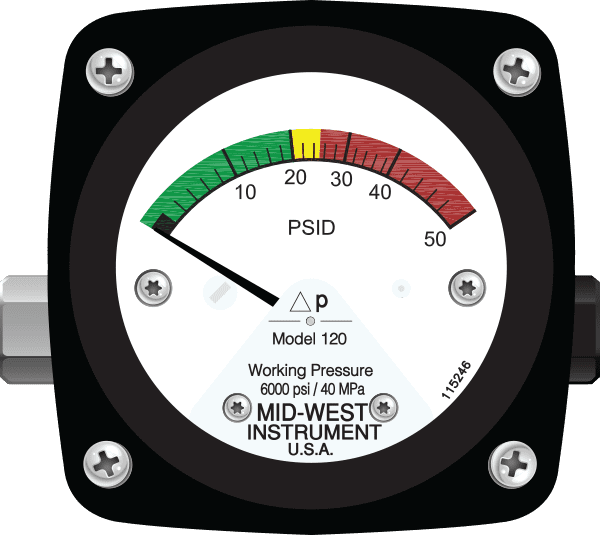

Mid-West 120 Aluminum Differential Pressure Gauge, 2.5" Dial, 0 to 3000 psig (0 to 10 psid), 1/4 NPTF Back Mount

https://www.branom.com/web/image/product.template/497505/image_1920?unique=c26756c
(0 review)

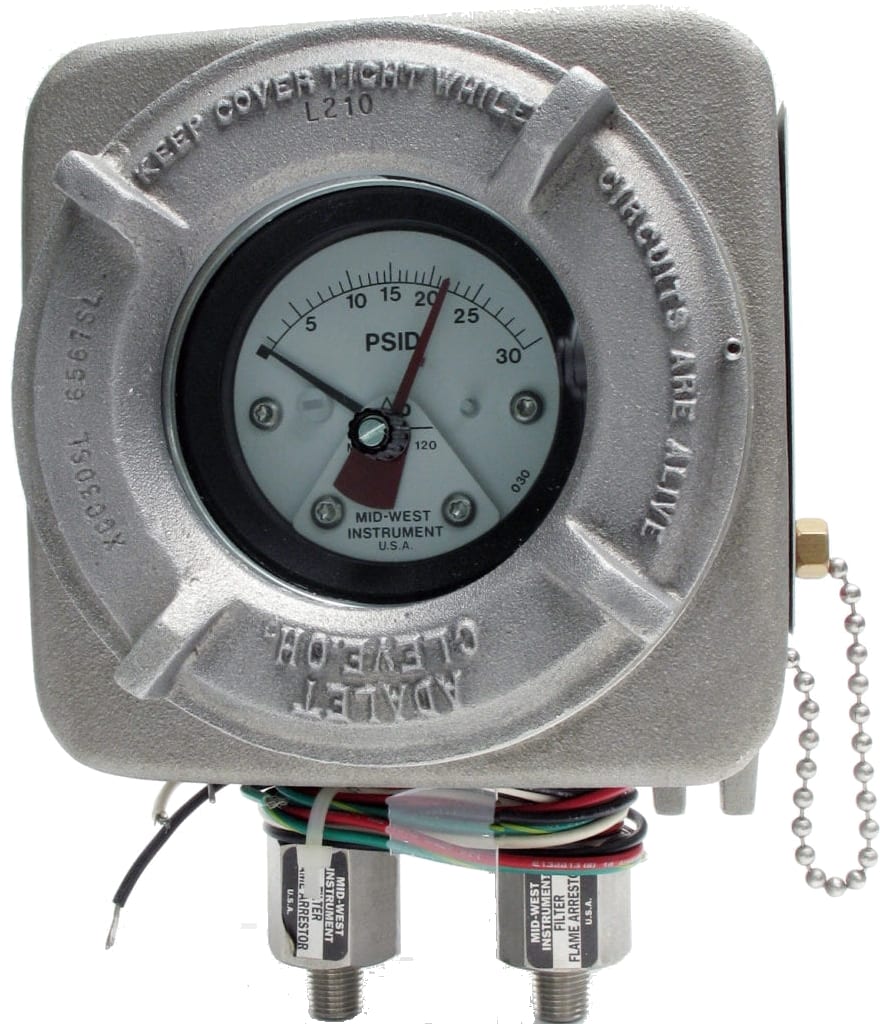

Model 120 – The Mid-West Instrument piston type gauge is our most versatile and customizable differential pressure gauge to fit your most demanding requirements. Available with multiple switch options including Hazardous location options. With a Full scale accuracy of ±3/2/3% combined with Differential pressure dial scales of 0-5 PSID to 0-110 PSID this rugged design is ready to do the job.


Features

  • +/- 3-2-3% accuracy
  • Aluminum body with stainless steel internals and ceramic magnet
  • 2.5 inch (63.5mm) unidirectional dial
  • Engineered plastic housing with shatter-resistant lens
  • Buna-N seals
  • 1/4" FNPT back connections
  • Maximum indicator follower pointer. Not compatible with liquid fill.

$ 253.33 253.33 USD $ 253.33

$ 253.33

Not Available For Sale

  • Gauge: Brand
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Case Material
  • Gauge: Wetted Material
  • Gauge: Wetted Material
  • Gauge: Wetted Material
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range
  • Gauge: Type

This combination does not exist.

Contact Us

Share

Model 120 – The Mid-West Instrument piston type gauge is our most versatile and customizable differential pressure gauge to fit your most demanding requirements. Available with multiple switch options including Hazardous location options. With a Full scale accuracy of ±3/2/3% combined with Differential pressure dial scales of 0-5 PSID to 0-110 PSID this rugged design is ready to do the job.


Features

  • +/- 3-2-3% accuracy
  • Aluminum body with stainless steel internals and ceramic magnet
  • 2.5 inch (63.5mm) unidirectional dial
  • Engineered plastic housing with shatter-resistant lens
  • Buna-N seals

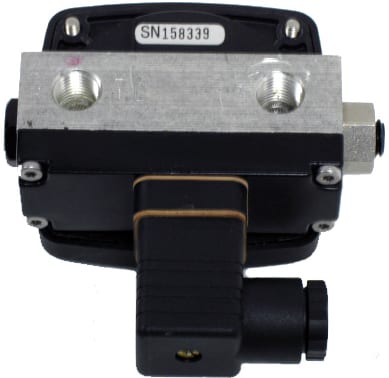

  • 1/4" FNPT back connections
  • Maximum indicator follower pointer. Not compatible with liquid fill.

Specifications

Gauge: Brand Mid-West, Mid-West
Gauge: Product Unit of Measure psig, psid
Gauge: Process Connection Location Back Mount
Gauge: Case Material Aluminum
Gauge: Wetted Material Ceramic Magnet, Stainless Steel, Copper Alloy (Brass)
Gauge: Dial Size 2-1/2 in (63 mm & 68 mm), 2-1/2 in (63 mm & 68 mm)
Gauge: Process Connection Size 1/4 NPT Female
Gauge: Accuracy ±3%

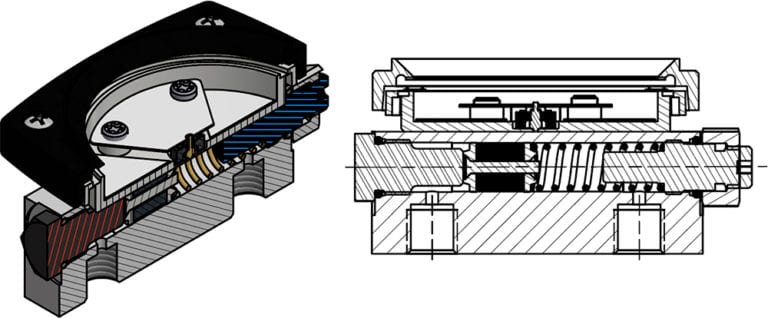

Gauge: Measuring Principle Piston
Gauge: Pressure Type Differential Pressure
Gauge: Model 120
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Type Dial Indicating Gauge
