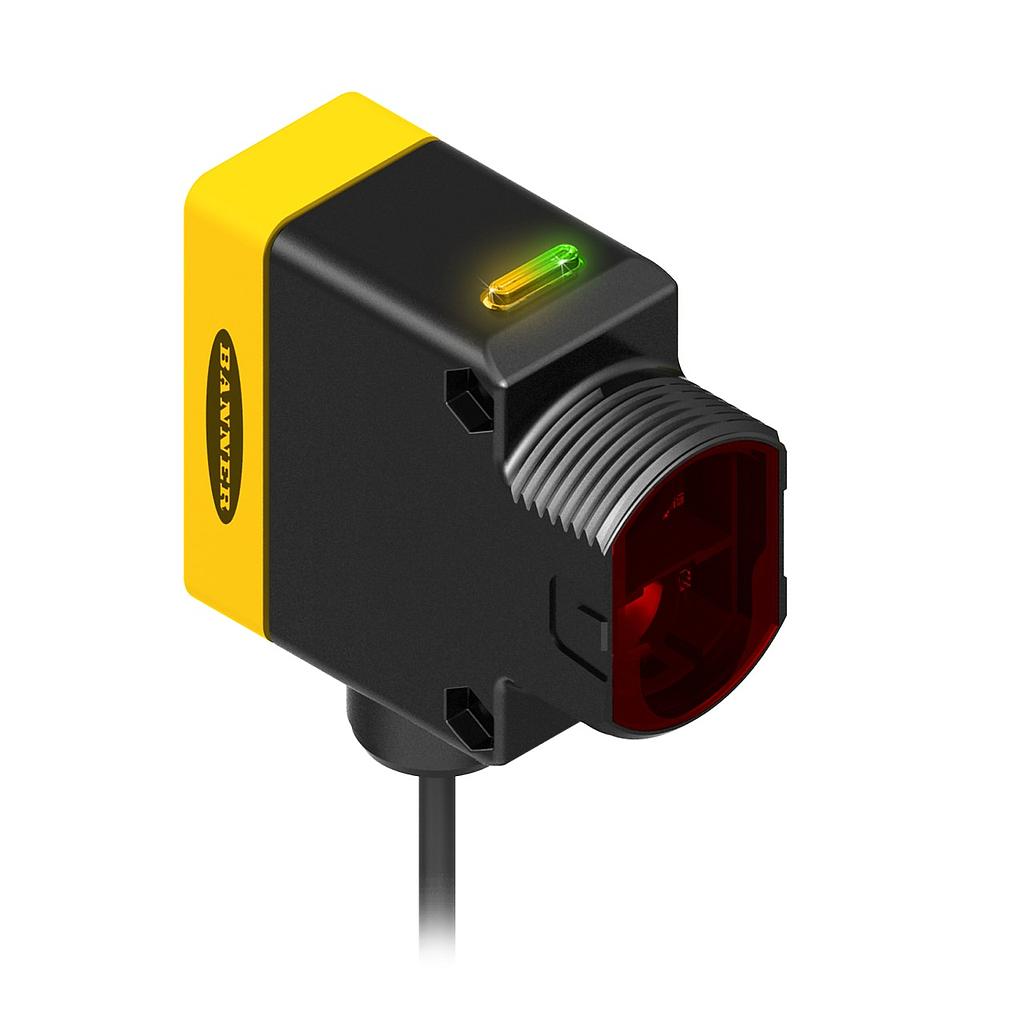

| OBSOLETE | (QS30AF600Q) WORLD-BEAM Adjustable-Field Sensor

https://www.branom.com/web/image/product.template/1361/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS30 Series: Adjustable-Field; Range: 50 to 600 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; Euro 5-pin Quick-Disconnect
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Case Material: Thermoplastic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 200 ms
  • Output Communication Protocol: PNP, NPN
  • Input Voltage: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 750
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 600 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Mechanical Screw
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Sensing Mode: Background Suppression (Adjustable)
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
