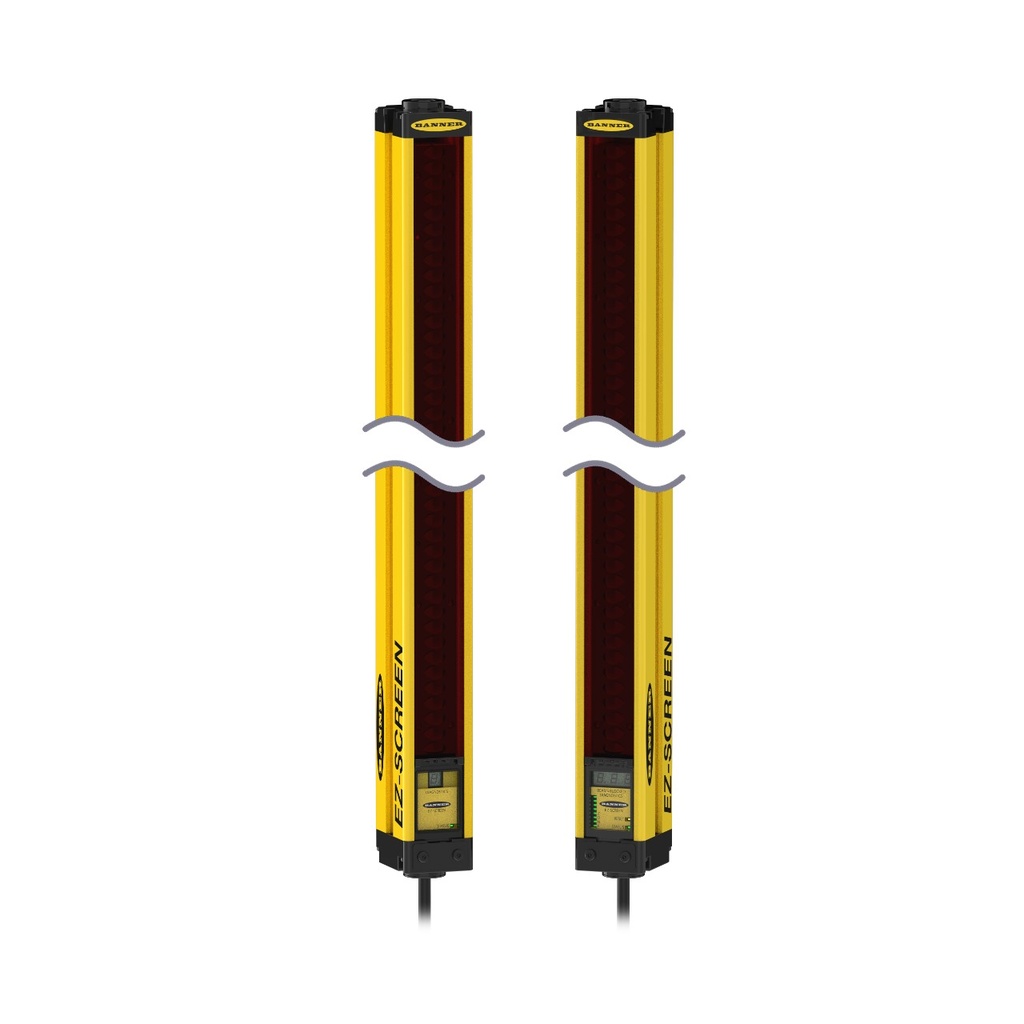

SLS Pair (SLSP30-1800P44NT)

https://www.branom.com/web/image/product.template/1348/image_1920?unique=c26756c
(0 review)

Features:

  • SLS Pair
  • Res.:30 mm
  • Range: 0.1 to 18 m (4 in to 60 ft)
  • Height: 1800 mm (70.9 in) Response Time: (Tr) 32 ms
  • No EDM
  • No Reset
  • No GND
  • M12 4-pin 300mm Pigtail QD Connector
  • Supply Current: 375 mA max.
  • Min Operating Temperature: 0 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65
  • Housing Material_: Aluminum/Acrylic/Zinc
  • Operating Voltage: 24 VDC +/- 15%
  • Physical Dimensions: 36 x 45.2 mm
  • PL Rating: Ple
  • Vibration: 10-55 Hz at 0.35 mm
  • SIL Rating: SIL3; CL3
  • Recovery Time: 25-152 / 81-495
  • Feature: ESD Safe: No
  • Feature: Test Input: No
  • OSSD Rating: 24 VDC @ 0.5 A/ea.
  • Overall Length: 1869 mm
  • System Type: Emitter/Receiver Pair
  • Operating Distance: 0.1 - 18 m
  • Response Time: 32
  • Effective Aperture Angle: Type 4
  • Feature: Reduced Resolution: Yes
  • Feature: Low-Profile: No
  • Feature: End-to-End Sensing: Yes
  • Number of Pins (Receiver/Emitter): 4
  • Defined Area Height: 1800 mm
  • Feature: Auxiliary Output: Yes
  • Electrical Safety Class: III
  • Shock: 10 g @ 16 ms
  • Feature: Short Protection: Yes
  • External Monitoring Device: 1 or 2 Channel
  • Feature: Fixed Blanking: Yes
  • Safety Level: Type 4
  • Feature: Integral Muting: No
  • Scan Code: Selectable
  • Trip/Latch Output: Selectable
  • Finish Material: Yellow Polyester
  • Short Protection: Yes
