Ez-Light Traffic Series: 2-Indicator Daylight Visible (SP250GRPQ)

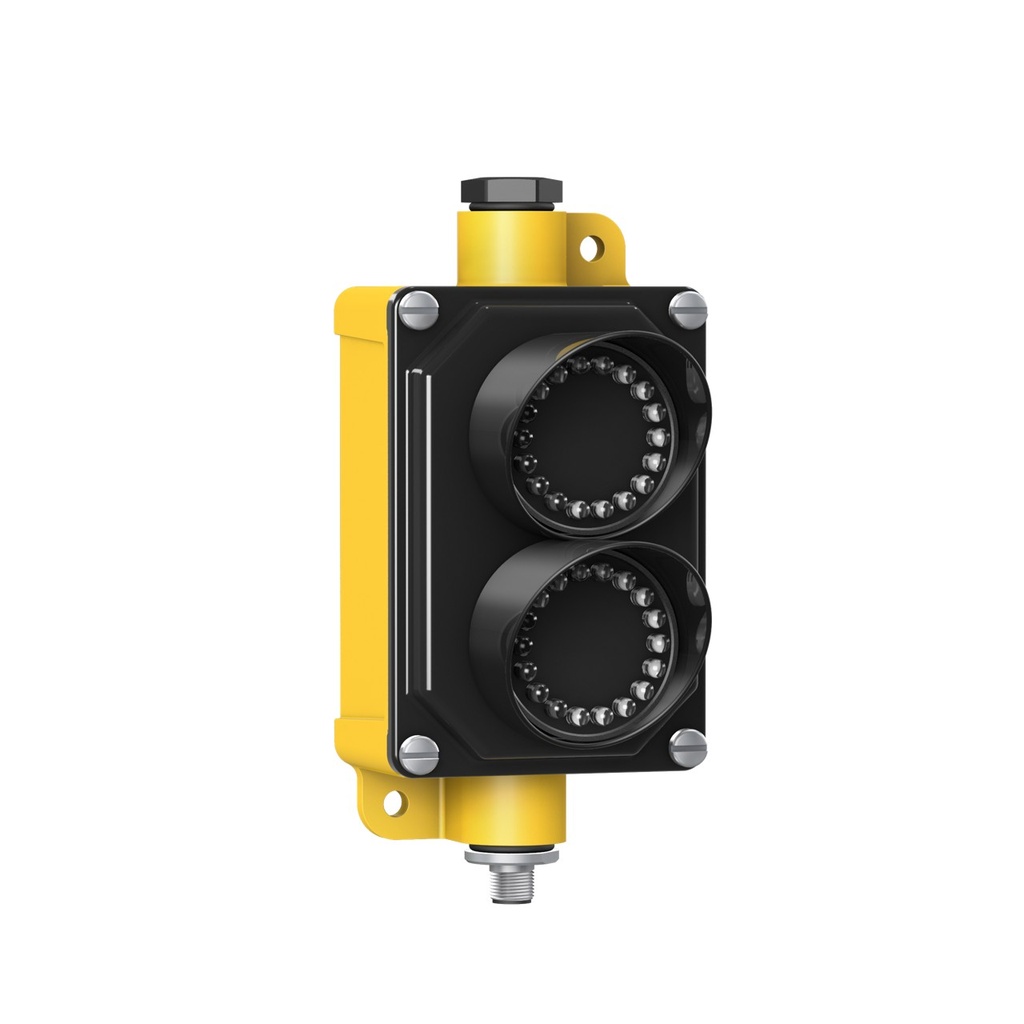

Representative photo. Please check item description for details.

Ez-Light Traffic Series: 2-Indicator Daylight Visible (SP250GRPQ)

https://www.branom.com/web/image/product.template/204592/image_1920?unique=c26756c
(0 review)

Features:

    EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Green Red; Euro-style Quick-Disconnect Connector
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 120 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Flat Mount - Signal Light
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 15-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 57
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 528 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 2
  • Lumens Color 2: 20
  • Color 2 - Wavelength/Color Temp/Coordinates: 625 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Mounting Thread: No Thread
  • Max Input Response Time (ms): 10 ms
  • Feature: Chemical Resistant: No
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection Type: Integral QD
  • Cord/Cable Length: 100 mm
  • Feature: Traffic Light: Yes
