World-Beam: Adjustable Field Foreground Suppression (QS18AB6AFF200Q5)

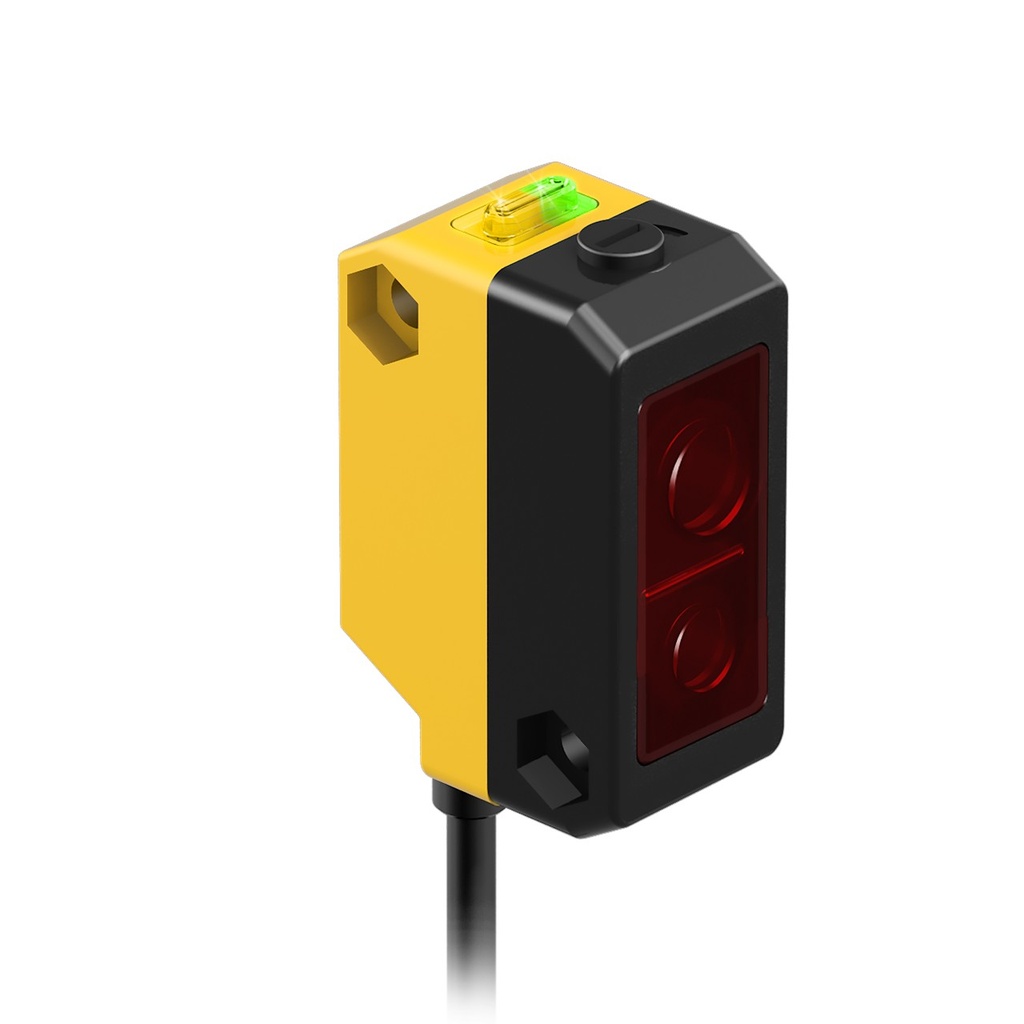

Representative photo. Please check item description for details.

World-Beam: Adjustable Field Foreground Suppression (QS18AB6AFF200Q5)

https://www.branom.com/web/image/product.template/204225/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM: Adjustable Field Foreground Suppression; Cutoff Adjustment Range: 30-200mm; Input:10-30V dc; Outputs: Bipolar NPN and PNP Light Operate; 6 in. Pigtail EURO-Style Pigtail QD Connector
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 200 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 250
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 630
  • Housing Style: Rectangular
  • Max Sensing Distance: 200 mm
  • Sensing Mode (Detailed): Foreground Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 2.5 ms
  • Operation: Light Operate
  • Adjustments: Mechanical Screw
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 145.00 145.0 USD $ 145.00

$ 145.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WORLD-BEAM: Adjustable Field Foreground Suppression; Cutoff Adjustment Range: 30-200mm; Input:10-30V dc; Outputs: Bipolar NPN and PNP Light Operate; 6 in. Pigtail EURO-Style Pigtail QD Connector
      • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 55 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 200 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 250
    • Sensing Beam: Visible Red LED
    • Sensing Beam Wavelength: 630
    • Housing Style: Rectangular
    • Max Sensing Distance: 200 mm
    • Sensing Mode (Detailed): Foreground Suppression (Adjustable)
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: ABS
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 2.5 ms
    • Operation: Light Operate
    • Adjustments: Mechanical Screw
    • Feature: Timing (Hold/Delay): No
    • Small Visible Spot: LED
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Pigtail QD
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 0.15 m
    • Indicator Type: LED
